Control relays are electrical switching devices that use low-power control signals to switch and isolate circuits, often controlling higher-power devices through their contacts. Widely used in automation, motor control, safety systems, and building services, they enable reliable signal transfer and electrical isolation between different parts of a control system. This guide explains what control relays are, their functions, types, working principle, wiring basics, and applications.
The first time someone opens an industrial control panel, they usually notice the big components. The circuit breakers. The contactors. The thick cables. Relays rarely get the same attention. They are smaller. Quieter. Easy to overlook. Yet it's often the relay that's quietly telling the rest of the system what to do.
A conveyor starts because a relay allowed the signal through. A motor stops because a relay changed contact position. A warning alarm activates because a relay responds to a changing condition somewhere in the circuit. This is what makes control relays interesting. They don't usually handle the spotlight. They handle communication. In modern electrical systems, communication matters just as much as power. Without relays, many of the automated functions we take for granted inside factories, buildings, and machinery would become much harder to achieve.
Think of control relays as decision-makers that don't make decisions. A control relay doesn't decide anything on its own. It simply reacts to a signal and changes the state of its contacts. But that simple action can trigger a surprisingly large chain of events.
All because one relay changed position.
Relays allow low-power control signals to influence completely separate circuits. That separation is incredibly useful because it keeps operators, sensors, and controllers isolated from higher-power equipment. It's one of the reasons relays have remained relevant for decades despite the rise of advanced automation systems. Some technologies evolve. The basic need for reliable switching never really goes away. Relays are generally not intended for switching very high currents directly; contactors or circuit breakers are typically used for high-power circuits.
Relays perform dozens of different tasks simultaneously. Most of them happen quietly. This is exactly how they are supposed to work.
One of the primary functions of control relays is transferring control signals from one part of a system to another. A sensor may detect a condition. A push button may be pressed. A controller may issue a command. The relay receives that instruction and passes it forward by changing the state of its contacts.
Imagine connecting sensitive electronics directly to every high-power device inside a factory. Not ideal. Electromechanical relays provide galvanic isolation between control and power circuits, while solid-state relays offer functional isolation depending on their design.
Before programmable controllers became common, entire systems were built around relay logic. Relays can perform interlocking and sequencing functions, although these roles are now often handled by programmable logic controllers (PLCs) in modern systems.
Another important part of the functions of control relays involves coordinating multiple devices. One relay can trigger another. The relay may activate a contactor. The contactor may start a motor. Small actions ripple through the system, creating controlled and predictable operation.
Spend enough time around electrical panels, and you will notice something quickly. Not every relay looks the same. More importantly, not every relay behaves the same way.
Nobody notices safety relays when everything is running normally. That's the point. These relays spend most of their lives waiting for an emergency stop button to be pressed, a safety gate to open, or a hazardous condition to appear. When that happens, they react immediately to help move equipment into a safer state.
Most relays return to their original position once power disappears. Latching relays don't. Once activated, they stay in their new state until another signal changes them back. This characteristic makes them useful in applications where maintaining position is important without continuously energising the relay coil.
Sometimes, immediate action isn't the right action. Time delay relays introduce a controlled pause before switching occurs. Motor starting sequences, process automation tasks, and equipment coordination systems often depend on this delay to keep operations smooth and predictable.
Among modern relay types, solid-state relays have become increasingly common. There are no moving contacts, reducing mechanical wear, but they generate heat and may exhibit small leakage currents in the OFF state. They are widely used where silent operation, fast switching, and long service life are required.
These are the relays most people picture immediately. A coil energises. A magnetic field forms. Contacts move. Simple. In an older manufacturing facility, you will probably still hear these relays clicking away after years of operation. They remain popular because they are reliable, familiar, and easy to troubleshoot.
Auxiliary (control) relays are often used alongside contactors to handle control logic and signal interfacing. Although they do not switch heavy motor currents directly, they play an essential role in industrial control circuits by expanding contact capacity and coordinating equipment operation.

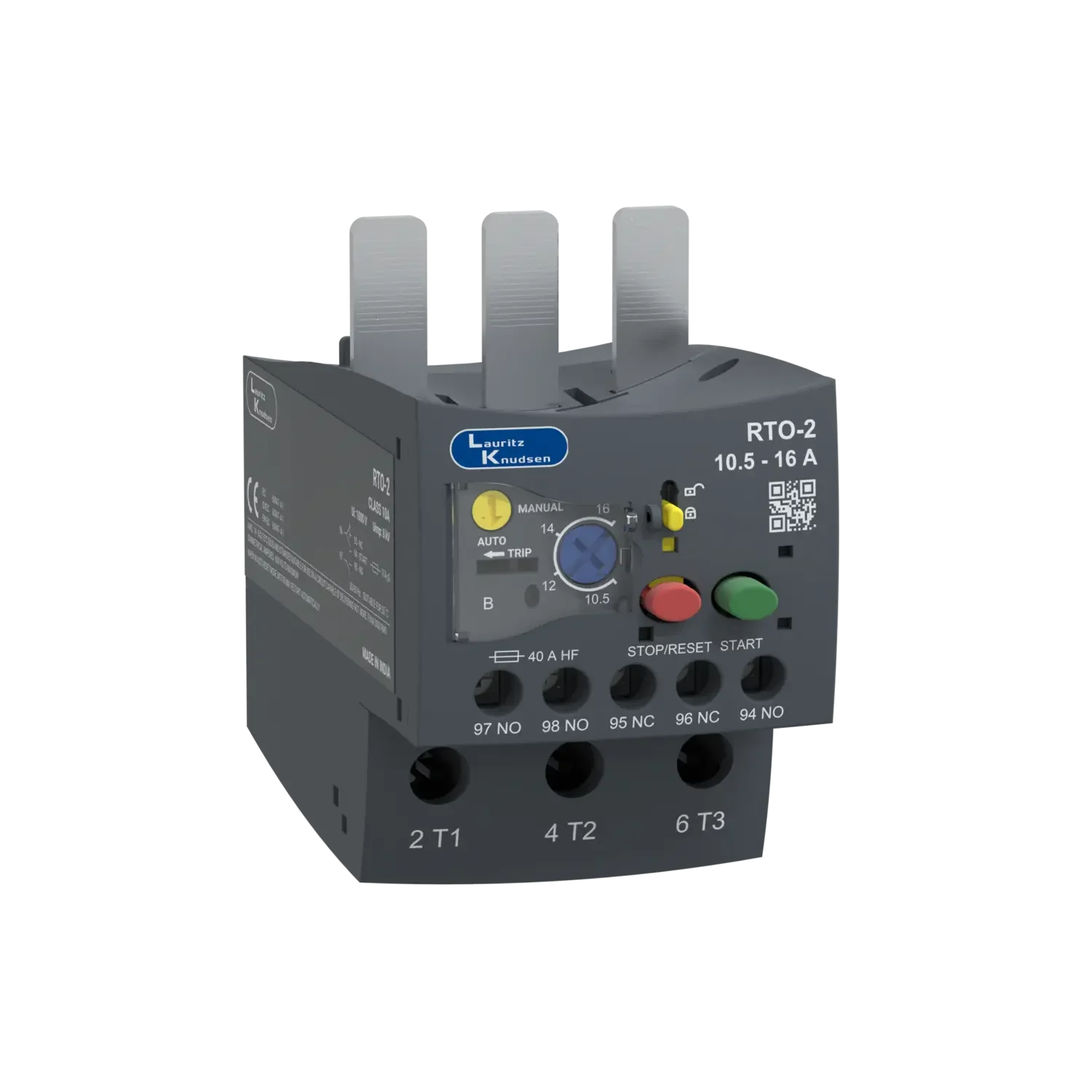

Heat generated by excessive current provides valuable protection information. Thermal relays operate based on the heating effect of current (typically using bimetal elements) to protect equipment from overload conditions. They are commonly installed with motors to disconnect the control circuit before overheating causes damage.
Motors rarely fail instantly. Most failures develop gradually. Overload Relays monitor motor current over time and trip when it exceeds safe limits, helping prevent overheating and damage. They protect motors from sustained overload conditions rather than instantaneous short circuits.
Many relay problems don't originate inside the relay itself. They start with wiring mistakes. Fortunately, good wiring practices eliminate most of these issues.
Anyone learning how to wire a control relay should begin with the wiring diagram. Not because diagrams are exciting. They aren't. But they identify terminal functions clearly and help prevent incorrect connections before installation begins.
Every relay includes coil terminals that energise the device. These terminals receive the control voltage responsible for generating the magnetic field that moves the internal contacts. Identifying them correctly is essential before any wiring work proceeds.
The next step involves wiring the contact terminals. Normally open (NO) and normally closed (NC) contacts perform different switching functions depending on the circuit design.
Relay contacts must be selected based on voltage, current rating, and load type (resistive or inductive) to ensure reliable operation.
For DC relay coils, flyback diodes or surge suppression devices should be installed to protect control circuits from voltage spikes generated when the coil is de-energised. This improves reliability and helps protect PLC outputs, timers, and electronic controllers.
Experienced electricians often double-check wiring before restoring power. For good reason. A quick inspection can reveal mistakes that would otherwise cause unnecessary troubleshooting later. Testing before energising saves time and reduces frustration.
Relays look simple from the outside. Inside, however, a sequence of events unfolds every time they operate.
Everything starts when voltage reaches the relay coil. Current through the coil creates a magnetic field that operates the relay; AC relays often include shading rings to ensure smooth operation and prevent armature chatter.
Once the magnetic force becomes strong enough, a movable armature is pulled toward the coil. The movement is small. Sometimes only a few millimetres. Yet that tiny motion is enough to trigger contact changes throughout the relay.
This is where relay control systems become useful. As the armature moves, contact positions change. Normally open contacts close. Normally closed contacts open. Those changes influence connected circuits and allow the relay to perform its switching function.
A relay rarely operates alone. Its contact movement usually affects something else. A motor starter energises. A signal lamp illuminates. A valve opens. Through this process, relay control systems coordinate equipment throughout industrial and commercial installations.
The easiest way to appreciate relays is to notice where they appear. The answer is almost everywhere.
One of the most common applications of control relay technology can be found inside automated production systems. Relays help coordinate sensors, motors, conveyors, actuators, and control devices while ensuring operations occur in the correct sequence.
Open a motor control panel, and you're likely to find several relays. They help manage starting sequences, status indication, interlocking functions, and protective actions. Their role may seem small individually, but together they contribute significantly to reliable motor operation.
Large commercial buildings contain countless electrical systems working behind the scenes. Lighting controls, HVAC equipment, pumps, and utility services often depend on relays for switching and equipment coordination throughout daily operation.
Many important applications of control relay devices involve safety. Emergency shutdown systems, alarm circuits, safety interlocks, and protective arrangements rely on relays to react quickly when operating conditions change unexpectedly.
Also Read: Which Type of Protection Relay Should You Choose for Motors?
Relays aren't usually the largest component inside a panel. They aren't the most expensive either. Yet remove them, and many systems stop functioning the way they should.
Lauritz Knudsen Electrical & Automation offers a broad range of industrial control and protection solutions, including contactors, overload relays, motor starters, control devices, switches, sockets, and automation products designed to support reliable and efficient electrical installations. Their solutions help industries build systems that remain dependable, safe, and ready for demanding operating conditions.
Yes. Different relay models are designed for AC or DC operation, and the correct coil voltage should always be selected for the application.
The sound comes from the movement of the armature and contacts inside electromechanical relays during switching.
Inspection frequency depends on operating conditions, switching frequency, and maintenance practices, but periodic checks help ensure reliable performance.
Absolutely. Relays are commonly used alongside programmable logic controllers to interface control signals with field devices and equipment.
Electrical arcing, excessive switching current, environmental contamination, and frequent operation are among the most common causes of contact wear.
