Different Types of SPDs

Updated: Aug 31, 2026 | 6 min read

Technical Articles

Published: Mar 11, 2026 by Maya Pai

Technical Articles

Click on any topic to jump to that section

As per the IEC 61643- I (Standard for low voltage surge protective devices), different test waveforms have been defined to simulate the effects of the real world transients. SPDs can be classified in different categories based on survival of different test waveforms. Different types of SPDs are explained below.

Type 1 SPD

These SPDs are designed to divert excess energy caused by a surge generated due to direct lightning strikes on the power lines or on the equipment

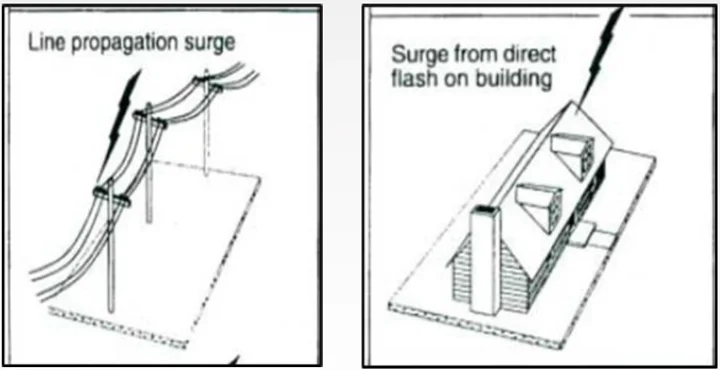

Direct lightning strikes

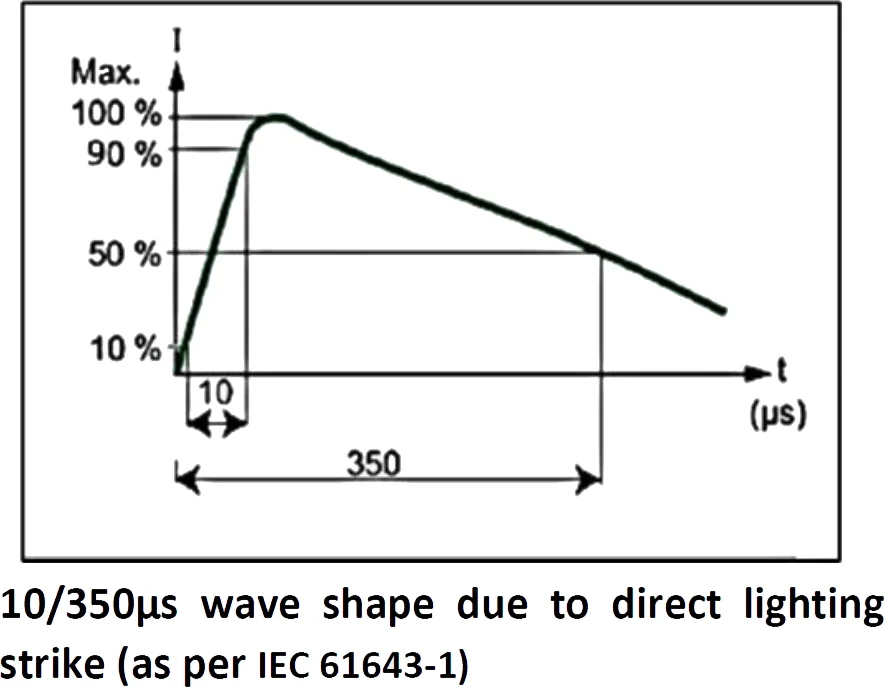

To simulate direct lighting strikes situation, IEC 61643-I Standard has defined 10/350 μ s waveform type which gets applied to SPD and SPD should divert excess energy to earth and give specified voltage protection level (Up) across the load.
Application: Type 1 surge protectors shall be installed in the electrical entry panel or Main panel, this is the first stage protection for surge in electrical network.
Type 1 SPDs are typically being used to prevent insulation breakdown of equipment s whose impulse withs tand voltage capacity is between 4-6kV

Type 2 SPD

These SPDs are designed to divert excess energy ca used by a surge generated due to operational switching action or by induced lightening current.

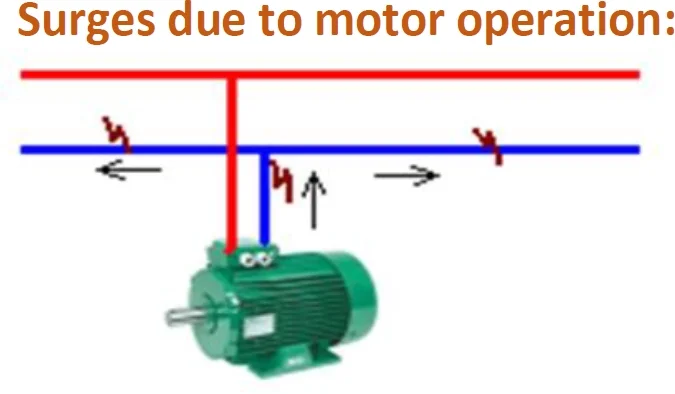

Example of Surges due to switching operation

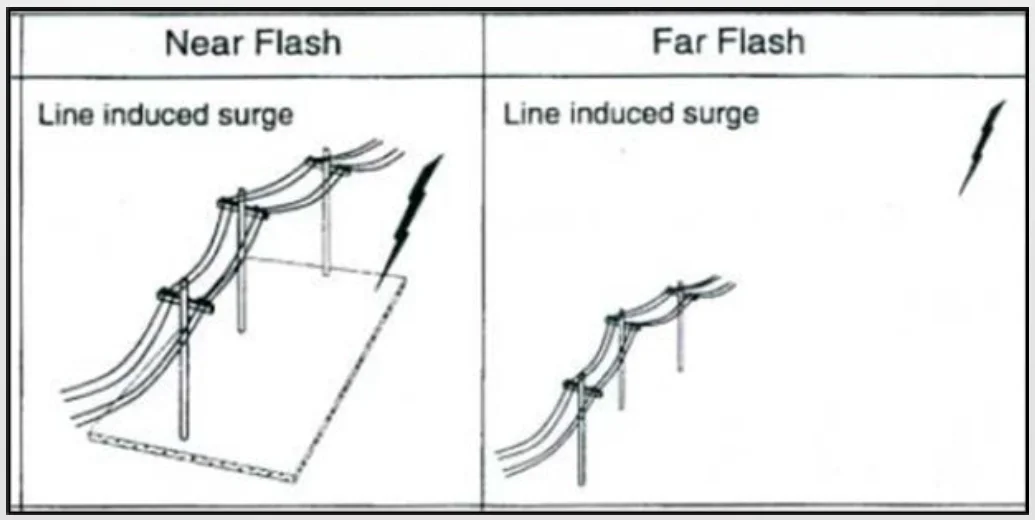

Induced lightning strikes (Indirect lightning Surges):

Type 2 SPD (continues)

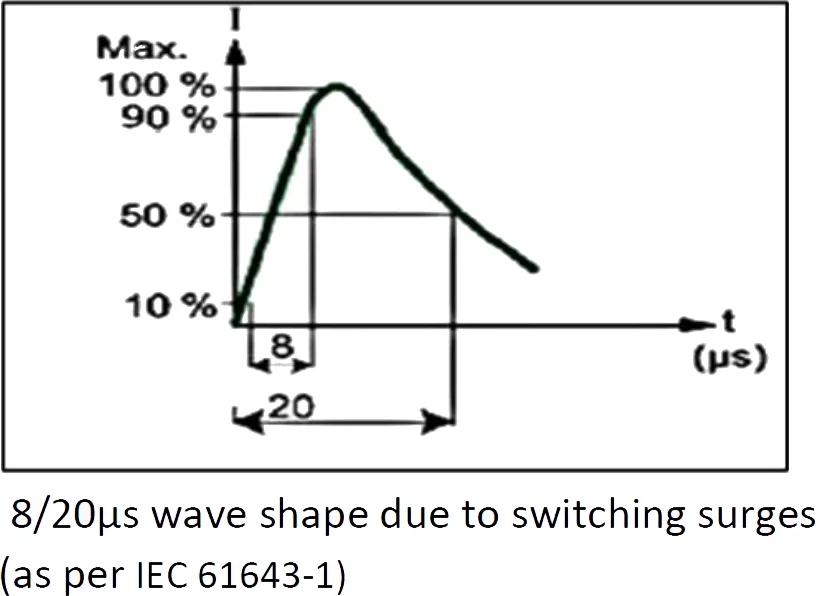

To simulate switching surges, IEC 61643-I standard has defined 8/20 μs waveform which gets applied to SPD and SPD should divert excess energy to earth and give specified voltage protection level (Up) across the load.
These SPDs typically offer a lower surge current discharge capacity than Type 1 SPDs
Application: Type 2 surge protectors are designed to be installed at sub distribution level, this is the second stage protection for surge in an electrical network
Type 2 SPDs are typically being used to prevent insulation breakdown of Electrical Appliances (like Re frigerators, Ovens etc.) whose impulse withstand voltage capacity is between 2.5-4 kV

Type 1+2 SPD

If Type 1 SPD, in addition of 10/350μs wave shape, also gets tested for 8/20μs then these SPDs are called as Type 1+2 SPDs
Type 1+2 SPDs are combination of Type 1 & Type 2 SPD which offers protection against both direct lightning strikes and indirect lightning strikes /switching operations
Application: Type 1+2 can give protection for wider range of equipments whose Impulse withstand voltage capacity is between 2.5 6 kV
In less lightning prone places, Instead of using Type 1 SPD, One can install Type 1+ 2 SPDs in electrical entry panel or Main panel as a first stage of surge protection.

Type 3 SPD

These SPDs must be installed as a supplement to Type 2 SPD in the system to protect sensitive electronic loads, these SPDs are designed to divert excess energy ca used by a surge generated due to operational switching action or by indirect lightning strikes.
If sensitive electronic loads are present in an electric network whose impulse withstand voltage capacity is less than 1kV, Type 2 SPD alone will not be able to maintain this much low withstand voltage across the load, hence load’s insulation could breakdown. Type 3 SPD shall be used as a supplement of Type 2 SPD in this case.

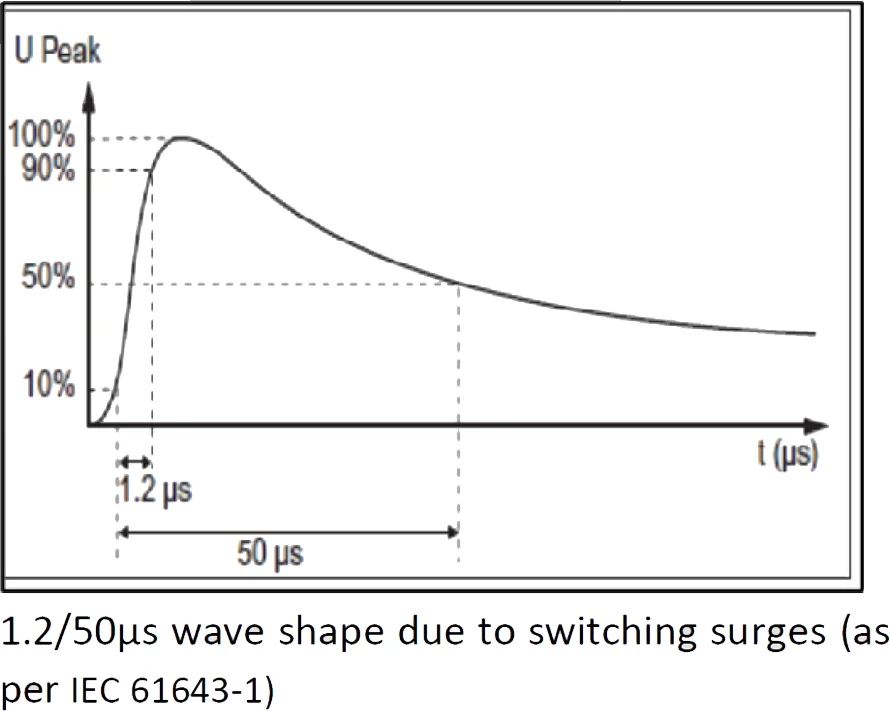

For Type 3 SPD to be tested by combination of 8/20μs current Waveform and 1.2/50μs voltage waveform as per IEC 61643-I standard.

Type 3 SPD (continues)

Application: Type 3 SPDs can be used in immediate vicinity of sensitive electronic loads whose impulse withstand voltage capacity is very low typically less than 1k V. For Application like Medical imaging, cloud server etc.
Type 3 SPD is a fine protection than Type 2 SPD in terms of maintaining impulse withstand voltage level against load these days many sensitive equipment s come with inbuilt Type 3 SPD.

Summary
	Type 1	Type 1+2	Type 2	Type 3
Test waveform as per IEC 61643-I	10/350 µs	10/350 µs & 8/20 µs	8/20 µs	8/20 µs & 1.2/50 µs
Gives protection against surge occurs due to	Direct lightning strikes	Direct/Indirect lightning strikes & Switching operation	Indirect lightning strikes & Switching operation	Indirect lightning strikes & Switching operation
Typically to be used against load's impulse withstand voltage (kV)	4 - 6	2.5 - 6	1.5 - 2.5	< 1 KV
Installation location	Electrical entry panel or Main panel	Electrical entry panel or Main panel	Sub distribution level	Along with Type 2 SPD, in vicinity of sensitive loads (Post Type 2 SPD)

Summary
	Type 1	Type 1+2	Type 2	Type 3
Test waveform as per IEC 61643-I	10/350 µs	10/350 µs & 8/20 µs	8/20 µs	8/20 µs & 1.2/50 µs
Gives protection against surge occurs due to	Direct lightning strikes	Direct/Indirect lightning strikes & Switching operation	Indirect lightning strikes & Switching operation	Indirect lightning strikes & Switching operation
Typically to be used against load's impulse withstand voltage (kV)	4 - 6	2.5 - 6	1.5 - 2.5	< 1 KV
Installation location	Electrical entry panel or Main panel	Electrical entry panel or Main panel	Sub distribution level	Along with Type 2 SPD, in vicinity of sensitive loads (Post Type 2 SPD)
