Accurate electrical measurements are necessary for safe and efficient system operation. Digital panel meters deliver real-time information about voltage, current, frequency, power, and other parameters, helping users monitor equipment performance. This guide explains what a digital panel meter is, how it works, and why it has become an important component in modern electrical installations.
Walk past an electrical panel in a factory, and there is a good chance a small digital display is quietly showing numbers that most people barely notice.
Voltage changes. Current rises and falls. Frequency remains steady. Everything appears routine. Yet those readings reveal exactly how an electrical system is behaving at that moment.
A motor rarely fails without giving some warning. Electrical systems regularly leave clues long before a breakdown occurs. That is where these digital panel meters become valuable. They provide continuous electrical measurements that help operators recognise unusual conditions early, making troubleshooting, maintenance, and day-to-day monitoring much more effective.
A digital panel meter is an electrical measuring instrument installed inside control panels, switchboards, distribution boards, and industrial equipment to display electrical parameters in real time. In contrast to traditional analogue meters that use moving pointers, digital meters present readings on an electronic display, reducing reading errors caused by parallax and typically providing higher measurement accuracy than analogue instruments.
Depending on the model, a digital panel meter can monitor voltage, current, frequency, power, energy, power factor, temperature, or other process variables. This continuous monitoring allows operators and maintenance teams to understand equipment performance without interrupting normal operation or carrying out manual measurements.
Although the display looks simple, several electronic processes take place inside the instrument before a numerical value appears on the screen. The meter continuously receives electrical signals, processes them, and converts them into accurate digital readings within fractions of a second.
Every measurement begins with an incoming electrical signal. The meter receives voltage or current from the monitored circuit through direct connections or instrument transformers, depending on the application. Internal signal-conditioning circuits prepare the input before further processing takes place. Understanding the digital panel meter working principle starts here because accurate signal conditioning provides reliable measurements regardless of normal variations within the electrical system.
Electrical quantities are naturally analogue. The meter cannot display those values directly, so an internal analogue-to-digital converter transforms incoming electrical signals into digital data. A microcontroller or dedicated measurement processor then calculates True RMS values, where applicable, and other electrical parameters before updating the display.
This conversion process forms the heart of the digital panel meter working principle, permitting precise electrical measurements to appear clearly and almost instantly on the display screen.
The final stage is the one everyone notices.
Calculated values appear on the display and refresh continuously as electrical conditions change. Operators can immediately observe voltage fluctuations, current variations, or abnormal operating conditions without additional measuring instruments. Reliable monitoring explains many digital panel meter uses, especially where uninterrupted observation helps maintenance teams detect developing electrical problems before they lead to equipment failures or unnecessary downtime.
A digital panel meter can only provide reliable measurements when it is connected correctly. While the exact wiring depends on the meter type and the electrical parameter being measured, careful planning, correct conductor identification, and following the manufacturer's wiring guidelines are important for accurate operation.
Before any wiring begins, determine exactly what the meter will measure. Some meters monitor voltage directly, while higher-voltage applications may use potential transformers (PTs) or voltage transformers (VTs). Current measurements are commonly obtained through current transformers (CTs). Multifunction meters may combine several electrical parameters in one unit. Multi-function meters may combine several electrical parameters in one unit. Planning the digital panel meter connection carefully helps prevent incorrect readings, reduces troubleshooting later, and ensures the instrument gets the appropriate electrical input for the intended application.
Electrical panels leave very little room for guesswork. Each terminal has a specific purpose, whether it is for supply voltage, measurement input, communication, or auxiliary power. Following the recommended digital panel meter connection diagram helps avoid wiring errors that could affect accuracy or damage the instrument.
Good cable identification and proper terminal tightening also improve long term reliability and measurement consistency.
Once installation is complete, the meter should never be assumed to be working correctly without verification. Compare displayed values with calibrated measuring instruments or known electrical conditions. Confirm that voltage, current, frequency, and other parameters respond correctly as loads change.
This final inspection is an important part of digital panel meter connection, helping ensure dependable measurements before the electrical system is placed into regular operation.
Digital panel meters are used wherever continuous electrical monitoring improves operational awareness. They supply valuable information that helps operators take informed decisions while supporting safer and more efficient electrical systems.

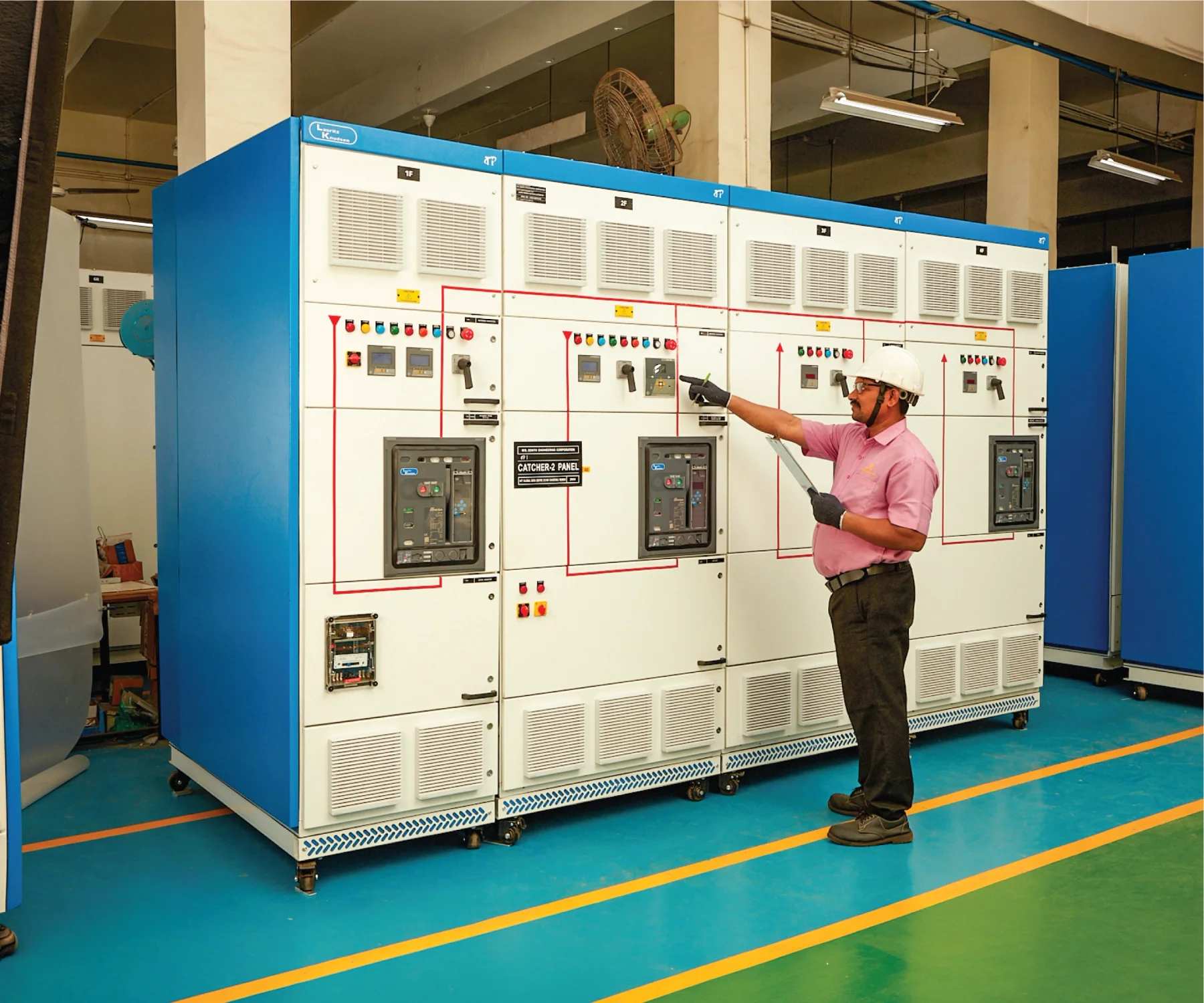

Open the main distribution panel in many commercial or industrial buildings, and a digital display is often one of the first things visible. Operators use these instruments to monitor incoming voltage, current, frequency, and other important electrical values throughout the day.
One common application of digital panel meter technology is providing continuous visibility of electrical system performance without interrupting normal operation or connecting portable measuring equipment.
Manufacturing facilities depend on accurate electrical information. Motors, pumps, compressors, and production equipment all perform better when operators understand how electrical loads behave during operation. Continuous monitoring also helps maintenance teams recognise unusual trends before failures occur.
These digital panel meters use support preventive maintenance, improve operating efficiency, and reduce unsolicited downtime across industrial control systems and process applications.
Modern energy systems demand accurate measurement. Solar installations, backup power systems, generator panels, and utility monitoring applications all rely on continuous electrical data. In renewable energy systems, digital panel meters are commonly used to monitor inverter output, energy generation, grid voltage, power quality, and other operating parameters. Digital meters make it easier to observe system behaviour under changing operating conditions.
Another important application of digital panel meter technology is helping engineers evaluate electrical performance, identify abnormalities, and optimise energy management across increasingly complex electrical installations.
Also Read: A Complete Guide to Multi-Function Meter
Electrical systems perform best when important operating parameters remain visible. A digital panel meter provides that visibility by offering accurate, real-time information about voltage, current, frequency, power, and other electrical values.
Understanding the digital panel meter working principle, following the correct digital panel meter connection, and selecting the right instrument for the intended application of digital panel meter all contribute to better system dependability and easier maintenance.
For dependable electrical measurement solutions, power monitoring products, and advanced control technologies, Lauritz Knudsen Electrical & Automation offers reliable solutions designed to aid modern industrial, commercial, and infrastructure applications.
Q. Can a digital panel meter measure multiple electrical parameters simultaneously?
Yes. Multifunction digital panel meters can display voltage, current, frequency, power, energy, and power factor within a single device.
Q. Are digital panel meters suitable for three-phase electrical systems?
Yes. Many models are specifically designed for monitoring three-phase electrical systems, including both 3-phase 3-wire and 3-phase 4-wire configurations, using appropriate wiring arrangements and instrument transformers where required.
Q. Why are current transformers used with some digital panel meters?
Current transformers safely reduce high currents to standard measurement levels, allowing accurate monitoring without connecting the meter directly to large load currents.
Q. Can digital panel meters communicate with SCADA or PLC systems?
Yes. Many modern meters support communication protocols such as Modbus RTU, Modbus TCP/IP, BACnet, EtherNet/IP, and other industrial communication standards, enabling integration with PLC, SCADA, and building management systems for remote monitoring.
Q. How often should a digital panel meter be calibrated?
Calibration intervals depend on the application, manufacturer recommendations, operational environment, and required measurement reliability. Periodic verification is recommended for critical electrical systems.
