iMMR Relay in textile industry

Updated: Aug 31, 2026 | 6 min read

Technical Articles

Published: Mar 11, 2026 by Sandeep Pawar

Technical Articles

Click on any topic to jump to that section

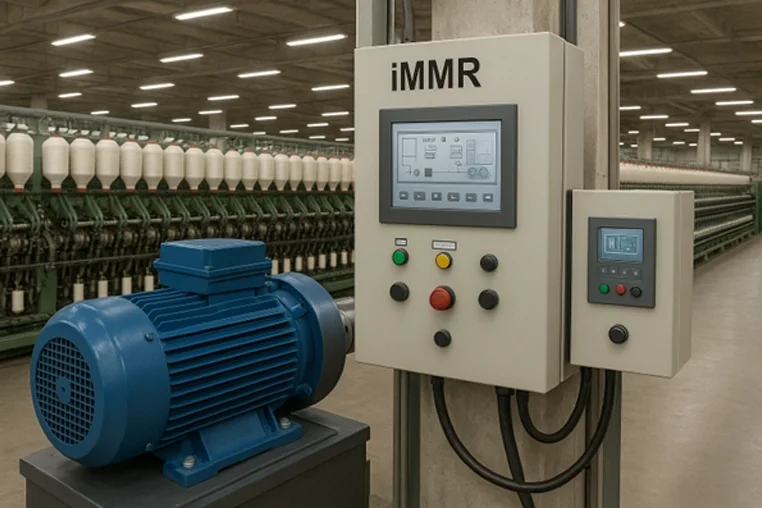

iMMR Relay is used in continuous polymer processing plants to maintain temperature in canned pumps.

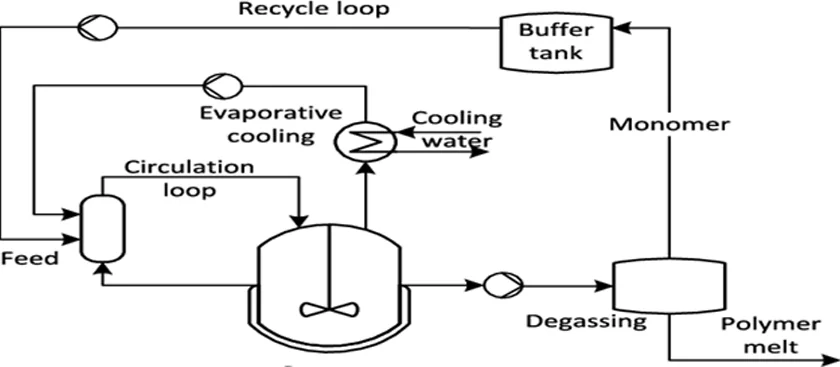

Re-acceleration feature in iMMR for textile application

What is re-acceleration feature

Re-acceleration is a method where the Relay restarts the motor automatically without user intervention for momentary voltage dips.

Re-acceleration feature application

In textile industry for continuous polymer processing plant voltage dip time set as 500ms because critical motor should not stop on voltage dip as temperature will drop in canned pump.

If this pump will stop then circulation will stop, and polymer will get jammed in pipeline

Other Applications in textile mill

No.	Reason	Explanation	Textile Example
1	Motor Protection	Protects from overload, phase failure, imbalance, short-circuit, stall, or overheating	Prevents motor burnouts in spinning frames, blowers, pumps
2	Reduced Downtime	Detects abnormal conditions early & trips before damage	Prevents stoppage of entire loom line due to one jammed motor
3	Energy Monitoring	Measures current, voltage, power, PF, and energy	Helps track energy use of each machine section (e.g., dyeing vs. winding)
4	Predictive Maintenance	Logs runtime, starts count, fault history	Alerts maintenance team before motor failure (e.g., worn bearings)
5	Automation & Control Integration	Communicates with PLC / SCADA (Modbus, Profibus, Profinet)	Enables centralized control & remote monitoring of MCCs
6	Harsh Environmental Conditions	Textile areas have dust, lint, humidity, and vibration	IMMR gives reliable operation with temperature & ground fault monitoring
7	Space & Wiring Reduction	Replaces multiple devices in MCC	Simplifies MCC design and improves safety
8	Standardization & Diagnostics	Provides uniform fault codes & parameters	Easier for maintenance staff to diagnose issues quickly

No.	Reason	Explanation	Textile Example
1	Motor Protection	Protects from overload, phase failure, imbalance, short-circuit, stall, or overheating	Prevents motor burnouts in spinning frames, blowers, pumps
2	Reduced Downtime	Detects abnormal conditions early & trips before damage	Prevents stoppage of entire loom line due to one jammed motor
3	Energy Monitoring	Measures current, voltage, power, PF, and energy	Helps track energy use of each machine section (e.g., dyeing vs. winding)
4	Predictive Maintenance	Logs runtime, starts count, fault history	Alerts maintenance team before motor failure (e.g., worn bearings)
5	Automation & Control Integration	Communicates with PLC / SCADA (Modbus, Profibus, Profinet)	Enables centralized control & remote monitoring of MCCs
6	Harsh Environmental Conditions	Textile areas have dust, lint, humidity, and vibration	IMMR gives reliable operation with temperature & ground fault monitoring
7	Space & Wiring Reduction	Replaces multiple devices in MCC	Simplifies MCC design and improves safety
8	Standardization & Diagnostics	Provides uniform fault codes & parameters	Easier for maintenance staff to diagnose issues quickly

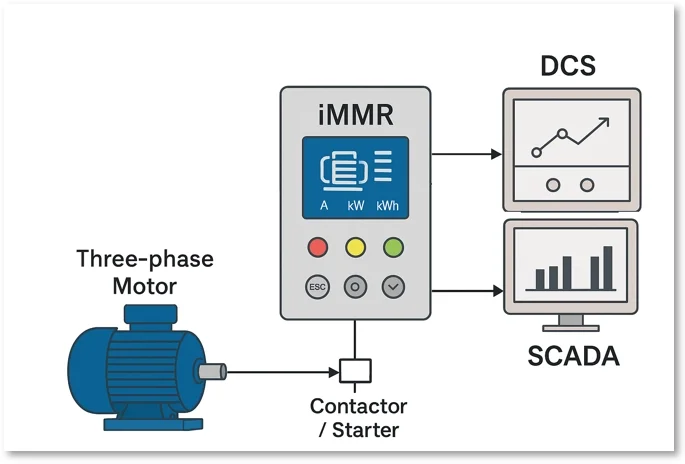

Typical Automation architecture with iMMR
