What is the Difference Between ACB and VCB Circuit Breaker?

Choosing between ACB and VCB circuit breakers depends largely on voltage level, application, and maintenance requirements. ACBs use air along with arc chutes and deionising plates to extinguish and control the arc. They are widely used in low-voltage distribution systems. VCBs use sealed vacuum interrupters, where the metal vapour arc collapses rapidly and the vacuum regains dielectric strength after current zero, making them ideal for medium-voltage applications. Understanding the difference between ACB and VCB helps organisations select reliable, safe, and cost-effective protection solutions.

Most people working around electrical systems know that circuit breakers are important. Ask them which type should be used in a particular application, though, and the conversation gets more interesting. This is especially true when ACBs and VCBs enter the discussion.

On paper, both devices do the same job. They protect equipment, isolate faults, and help keep electrical networks running safely. But once you look beyond that basic purpose, the similarities start to fade. The voltage levels are different. The interruption methods are different. Even the maintenance expectations can be very different.

The difference between ACB and VCB is less about memorising technical specifications. It is more about understanding where each breaker fits within a power system. This choice can influence reliability, downtime, maintenance costs, and even future expansion plans.

An Air Circuit Breaker (ACB) is commonly used in low-voltage power distribution systems such as factories, hospitals, airports, and commercial buildings.

The name reflects its operating principle. ACBs use air along with specially designed arc chutes and deionising plates to extinguish and control the electrical arc formed during fault interruption. ACBs are typically used in low-voltage systems up to approximately 690 V and are designed to interrupt both overload and short-circuit currents within their rated breaking capacity.

Lauritz Knudsen Electrical & Automation offers solutions such as the C Power and U-Power OMEGA ranges, both designed for demanding low-voltage applications where reliability is expected, not optional.

At first glance, an ACB looks like a large piece of equipment filled with mechanical parts. However, its operation follows a straightforward sequence. Detect a fault. Separate the contacts. Eliminate the arc. Restore safety. The entire process happens in fractions of a second.

Detecting and Interrupting the Fault

When abnormal current levels appear, the protection mechanism sends a trip signal. The breaker responds immediately by separating its contacts. As the contacts move apart, electricity attempts to continue flowing through the gap. This creates an arc. If left uncontrolled, that arc could damage equipment and threaten system stability. The breaker, therefore, has to extinguish it quickly and safely.

How the Arc Is Extinguished

This is where air circuit breakers get their name. The arc is directed into an arc chute, where metallic plates divide and cool it. As the arc stretches and loses energy, it becomes unstable and eventually disappears. The interruption is controlled, predictable, and highly effective. That's one reason ACB technology continues to be widely used across industrial and commercial power distribution networks.

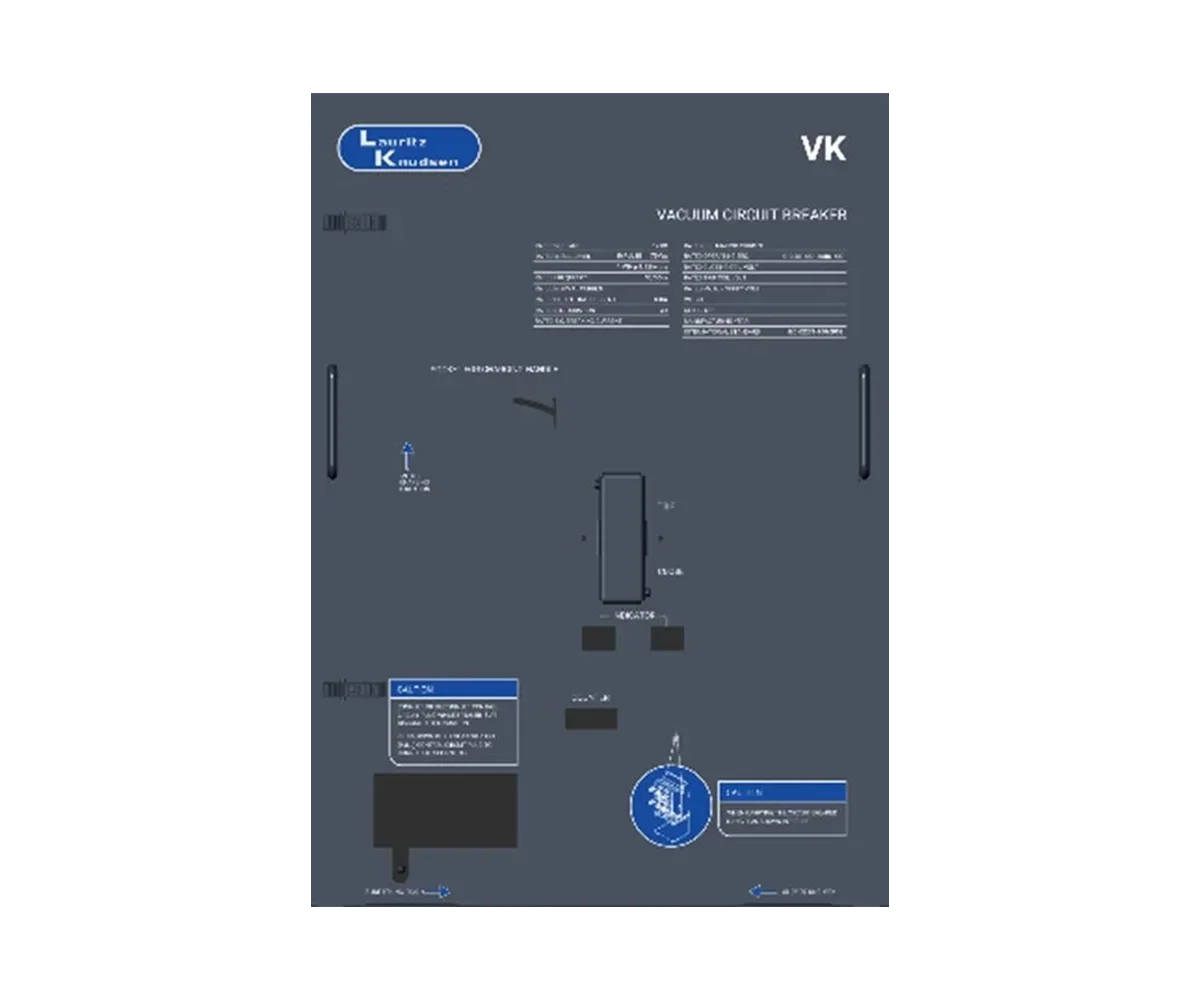

If ACBs dominate low-voltage systems, VCBs are generally preferred for medium-voltage installations. A Vacuum Circuit Breaker (VCB) uses a sealed vacuum interrupter to interrupt electrical faults.

Vacuum provides exceptionally high dielectric strength. When the AC current reaches its natural zero crossing, the metal vapour arc collapses rapidly, and the vacuum quickly regains its dielectric strength, extinguishing the arc efficiently. VCBs are typically used in medium-voltage systems ranging from approximately 3.3 kV to 36 kV and are designed to interrupt overload and short-circuit currents within their rated breaking capacity.

The operating sequence of a VCB is remarkably efficient. In fact, one reason many engineers favour vacuum technology is that there are fewer variables involved during interruption. Less complexity often means greater reliability.

Contact Separation in a Vacuum Chamber

Current normally flows through contacts enclosed inside a sealed vacuum interrupter. When a fault occurs, those contacts separate. A short-lived arc appears due to the metal vapour generated from the contact surfaces. Unlike conventional environments, however, the vacuum does not support prolonged arc development.

Recovery After Interruption

As alternating current naturally reaches zero, the metal vapour condenses almost instantly. The chamber quickly regains its insulating properties, and the arc disappears. This fast recovery process is one reason vacuum circuit breakers are frequently selected for medium-voltage switching duties where consistent performance and reduced maintenance are important.

People often compare these breakers as if one must be better than the other. That's usually the wrong approach. The real question is where each breaker performs best.

The difference between ACB and VCB becomes much easier to understand when viewed from the perspective of application requirements rather than product preference.

Voltage Applications

Perhaps the most obvious VCB and ACB difference relates to operating voltage. ACBs are generally installed in low-voltage systems serving buildings, industries, and commercial facilities. VCBs are designed for medium-voltage environments such as substations, industrial feeders, renewable energy networks, and utility infrastructure.

Working Principle

The interruption method creates another major distinction. ACBs rely on atmospheric air and arc chutes to extinguish arcs. VCBs perform the interruption inside sealed vacuum interrupters. Both approaches are effective, but they are engineered for different operating conditions and voltage levels.

Medium

ACBs use air within engineered arc-control chambers, while VCBs rely on a sealed vacuum interrupter that provides excellent dielectric strength and rapid insulation recovery after interruption.

Maintenance Requirements

Maintenance requirements often influence equipment selection. ACBs require periodic inspection of contacts and arc-control components. VCB interrupters remain permanently sealed throughout their operational life and do not require maintenance of the interruption medium, unlike some other breaker technologies.

Arc Chute

An ACB uses arc chutes to manage and extinguish the arc produced during fault interruption. These components are central to its operation. VCBs do not require arc chutes because the interruption process occurs entirely within the vacuum chamber, resulting in a different internal design philosophy.

Arc Development

In ACBs, the arc is formed and controlled within arc chutes, where it is actively split, cooled, and extinguished. In VCBs, the arc exists only briefly as a metal vapour plasma inside the vacuum interrupter before collapsing at current zero.
