Linearity of Reactor

Updated: Aug 19, 2026 | 6 min read

Technical Articles

Published: Jul 14, 2026 by Rajesh Shirodkar

Technical Articles

Click on any topic to jump to that section

An industry whose load includes a high proportion of non-linear load (harmonic generating loads), with poor power factor, requires capacitor with de-tuned filter. This performs the function of power factor improvement while preventing harmonic amplification.

Normally, the inductance of the series reactor (of de-tuned filter) connected is chosen such that the tuning frequency of the de-tuned filter is 10% below the lowest harmonic frequency with considerable current/voltage amplitude. Therefore, resonance does not happen in the system and reactor offers high impedance for higher frequency harmonics.

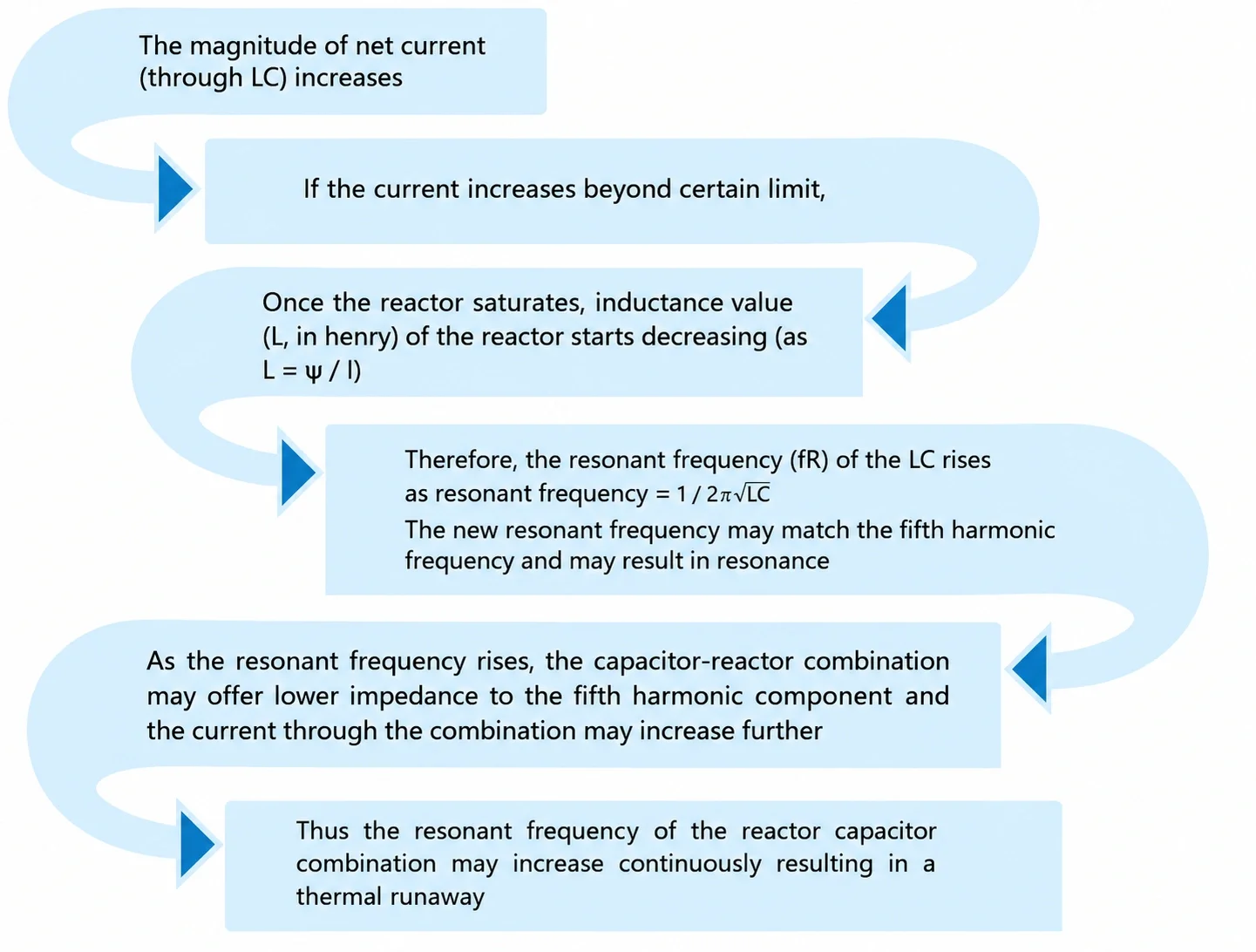

Normally, 7% detuned reactors are designed considering typical industrial loads such as drives that have the following harmonic voltages: V₃= 0.5% V_N, V₅= 6% V_N, V₇= 5% V_N and so on. However, if the individual harmonic voltages increase, the following phenomenon happens:

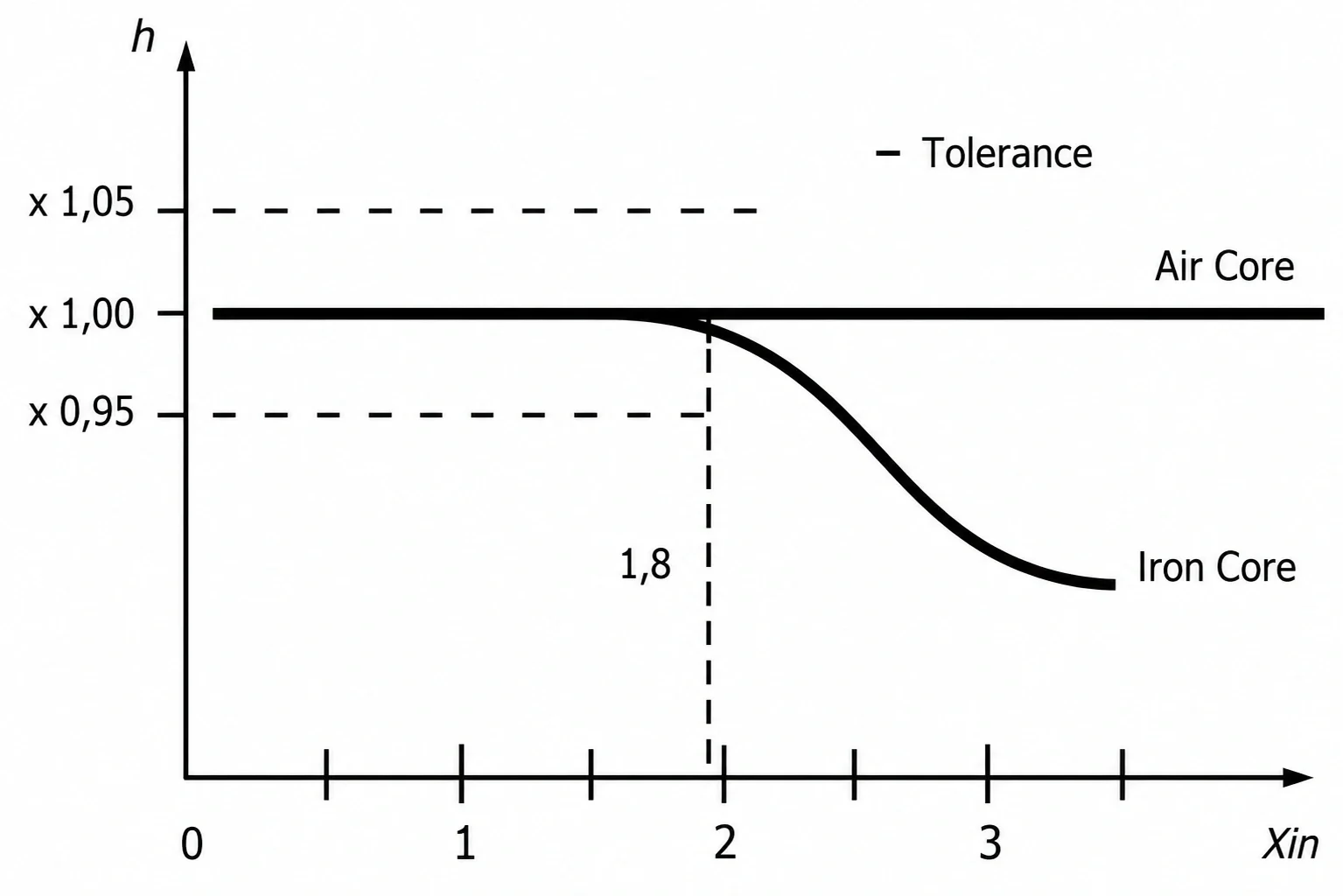

Normally, reactors are designed with predefined linearity. A reactor having a higher linearity does not saturate for higher harmonic currents and prevents the system from a thermal run away as described above.
