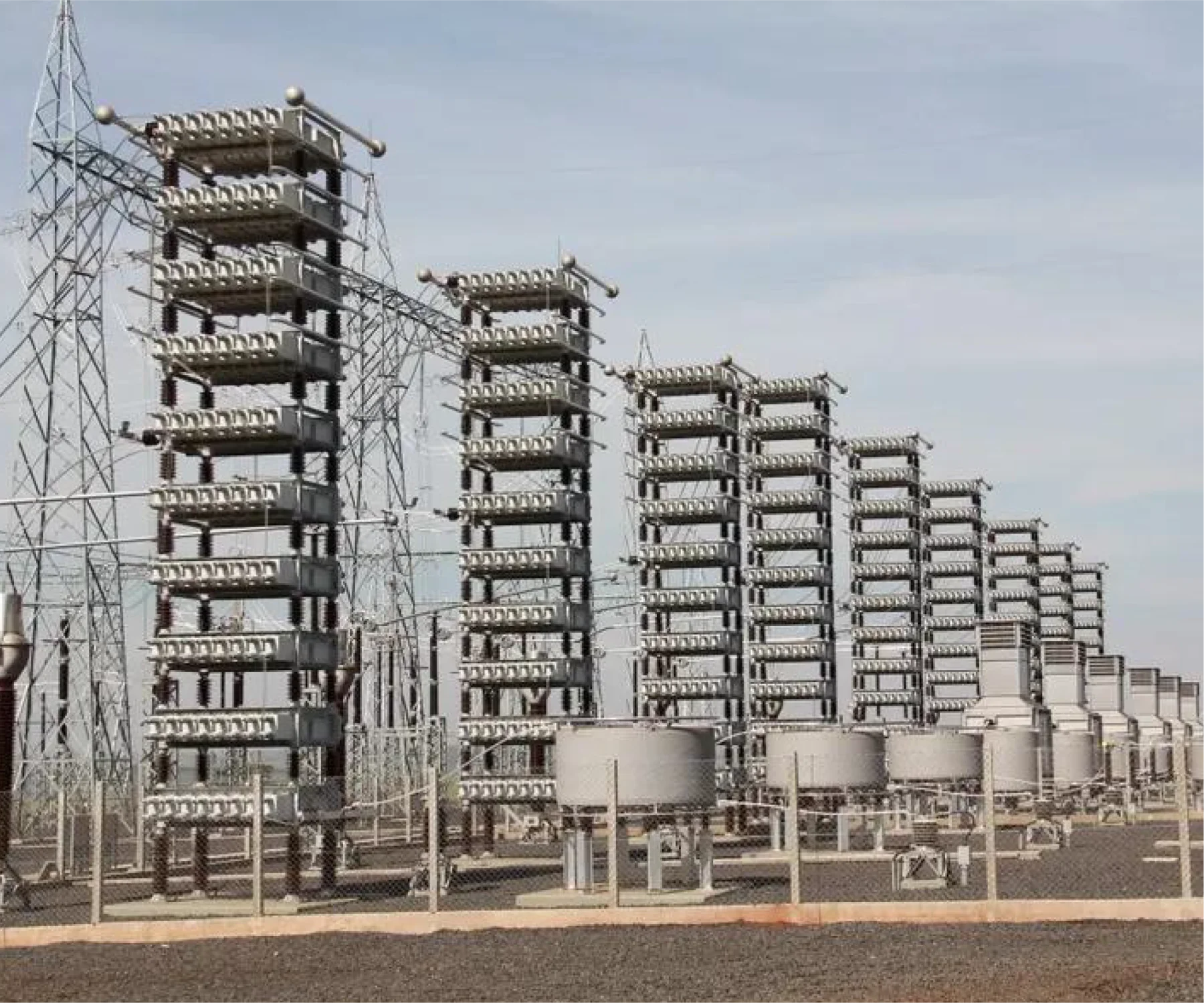

Blog - Selection of capacitors for detuned harmonics filters

How to select the capacitor voltage and kVAr for detuned harmonics filter application?

Typically a detuned filter has a series connected capacitor and reactor. The capacitor terminal voltage varies with respect to the tuning factor (%p) of the reactor. Tuning factor (%p) is the ratio of inductive impedance to the capacitive impedance (XL / XC). Common tuning factors of detuned filters are 7% and 14%.

The voltage that appears across the terminals of a capacitor increases the moment an inductor is connected in series. This can be illustrated by the below phasor:

V_S: System Voltage; V_C: Voltage across the capacitor; V_L: Voltage across the inductor; I: current.

As can be seen from the above figure, V_C > V_S by an amount V_L.

The actual amount of voltage increase can be calculated using the following formula:

V_C = Vs/(1-%p/100)

For example, the capacitor terminal voltage with 7% detuned reactor shall be calculated using the above formula:

V_C = 400/(1-7/100)

V_C = 473V

Hence the rated voltage of the capacitor should be selected as 480 V when used along with 7% reactor.

When 14% reactor is used along with the capacitor, the capacitor terminal voltage,

V_C = 440/(1-14/100)

V_C = 512V

Here the capacitor should be rated for 525 V when used along with 14% reactor.

Capacitor kVAr selection for both 7% and 14% reactors are given below:

Selection of capacitors for detuned harmonic filter application

Step size and reactor rating (440 V)	With 7% detuned reactor			With 14% detuned reactor
Step size and reactor rating (440 V)	Capacitor series	Capacitor (480 V)	Capacitor (525 V)	Capacitor series	Capacitor (525 V)
1 kVAr	LTCCR,LTCCF	1.2 kVAr	1.3 kVAr	LTCCR,LTCCF	1.3 kVAr
2 kVAr	LTCCR,LTCCF	2.2 kVAr	2.6 kVAr	LTCCR,LTCCF	2.6 kVAr
3 kVAr	LTCCR,LTCCF	3.3 kVAr	3.9 kVAr	LTCCR,LTCCF	3.9 kVAr
4 kVAr	LTCCF	4.4 kVAr	5.3 kVAr	LTCCF	5.3 kVAr
4 kVAr	LTCCR	4.4 kVAr	5 kVAr	LTCCR	5 kVAr
5 kVAr	LTCCR,LTCCF,LTBCH,LTBCP	5.5 kVAr	6.6 kVAr	LTCCR,LTCCF,LTBCH,LTBCP	6.6 kVAr
5 kVAr	LTCCN,LTCCU,LTBCU	7.5 kVAr	7.5 kVAr	LTCCN,LTCCU,LTBCU	7.5 kVAr
10 kVAr	LTCCD,LTBCD,LTCCR,LTBCH,LTBCP	11.1 kVAr	13.2 kVAr	LTCCD,LTBCD,LTCCR, LTBCH,LTBCP	13.2 kVAr
10 kVAr	LTCCN,LTCCU,LTBCU	12.5 kVAr	12.5 kVAr	LTCCN,LTCCU,LTBCU	12.5 kVAr
12.5 kVAr	LTCCN,LTCCR,LTBCH,LTCCU,LTBCU	15 kVAr	15 kVAr	LTCCN,LTCCR,LTBCH, LTCCU,LTBCU	15 kVAr
12.5 kVAr	LTCCD, LTBCD, LTBCP	13.8 kVAr	16.6 kVAr	LTCCD,LTBCD,LTBCP	16.6 kVAr
15 kVAr	LTCCN,LTCCR,LTBCH,LTCCU,LTBCU	20 kVAr	20 kVAr	LTCCD, LTBCD, LTCCN, LTCCR, LTBCH, LTCCU, LTBCU,LTBCP	20 kVAr
15 kVAr	LTBCP,LTCCD,LTBCD	16.6 kVAr	20 kVAr	LTCCD, LTBCD, LTCCN, LTCCR, LTBCH, LTCCU, LTBCU,LTBCP	20 kVAr
20 kVAr	LTCCN,LTCCR,LTBCH,LTBCU	25 kVAr	25 kVAr	LTCCN,LTCCR,LTBCH,LTBCU	25 kVAr
	LTBCP,LTCCD,LTBCD	22.1 kVAr	26.5 kVAr	LTCCD,LTBCD,LTBCP	26.5 kVAr
	LTCCU	7.5 + 15 kVAr	2 x 12.5 kVAr	LTCCU	2 X 12.5 kVAr
25 kVAr	LTCCD,LTBCD,LTCCR,LTBCH,LTBCP	27.7 kVAr	33.1 kVAr	LTCCD, LTBCD, LTCCN, LTCCR, LTBCH, LTBCU, LTBCP	30 kVAr
	LTBCU	30 kVAr	33.1 kVAr
	LTBCU	30 kVAr	25 + 8.33 kVAr
	LTBCU	12.5 + 15 kVAr	15 + 20 kVAr	LTCCU	(10+20) kVAr
50 kVAr	LTCCD,LTBCD,LTCCR,LTBCH,LTBCP	2 x 27.7 kVAr	2 x 33.1 kVAr	LTCCD, LTBCD, LTCCN, LTCCR, LTBCH, LTBCU, LTBCP	2 x 30 kVAr
	LTBCU	2 x 30 kVAr	2 x 33.1 kVAr
	LTCCN	2 x 30 kVAr	4 x 33.1 kVAr
	LTCCU	2 x (12.5 + 15) kVAr	2 x (15 + 20) kVAr	LTCCU	2 x (10+20) kVAr
100 kVAr	LTCCD,LTBCD,LTCCR,LTBCH,LTBCP	4 x 27.7 kVAr	4 x 33.1 kVAr	LTCCD, LTBCD, LTCCN, LTCCR, LTBCH, LTBCU, LTBCP	4 x 30 kVAr
	LTBCU	4 x 30 kVAr	4 x 33.1 kVAr
	LTCCN	4 x 30 kVAr	4 x (25 + 8.33) kVAr
	LTCCU	4 x (12.5 + 15) kVAr	4 x (15 + 20) kVAr	LTCCU	4 x (10+20) kVAr
