Understanding SPD Terminologies

Published: Mar 11, 2026 | Updated: Apr 10, 2026

Technical Articles

Surge Protection Devices are defined by various electrical specifications, Understanding these specifications will help the user to select the right surge protection device specific to their installation/application.

Un - Nominal Operating Voltage

The nominal voltage stated for a SPD corresponds to the system voltage of the typical SPD installation site, e.g. 230/400V AC

Uc -Maximum Operating Voltage

Maximum r.m.s value of the voltage which is allowed to be continuously applied to the terminals of SPD in the event of surge
Once voltage across SPD terminals will go above this value, SPD will change its state from open circuit to closed circuit mode.
Uc value must always be equal to or higher than Un rating.

Imax- Maximum Discharge Current

Imax is the term associated with Type-2 SPD. It is the Peak current of 8/20μs wave shape a surge protector can withstand without destruction.

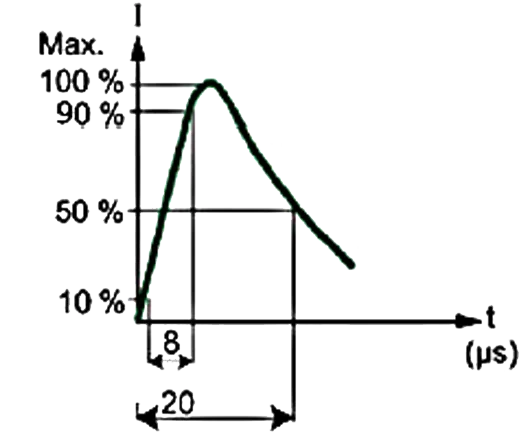

IEC 61643- I standard (Standard for low voltage surge protective devices) has defined below 8/20μs current waveform to simulate switching surges/surges due to indirect lightning strikes.

Iimp - Maximum Lightning Surge Current

Iimp is the term associated with Type-1 SPD. It is the Peak current of 10/350μs waveform a surge protector can withstand without destruction.

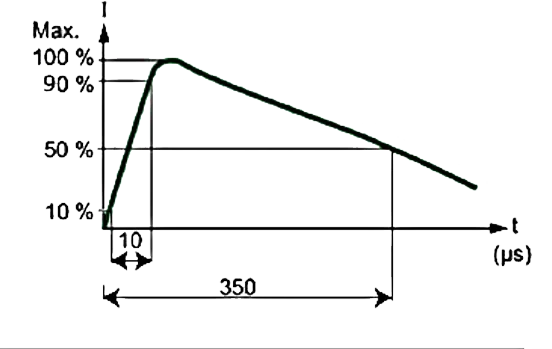

IEC 61643-I standard (Standard for low voltage surge protective devices) has defined below 10/350μs current waveform to simulate direct lightning strikes.

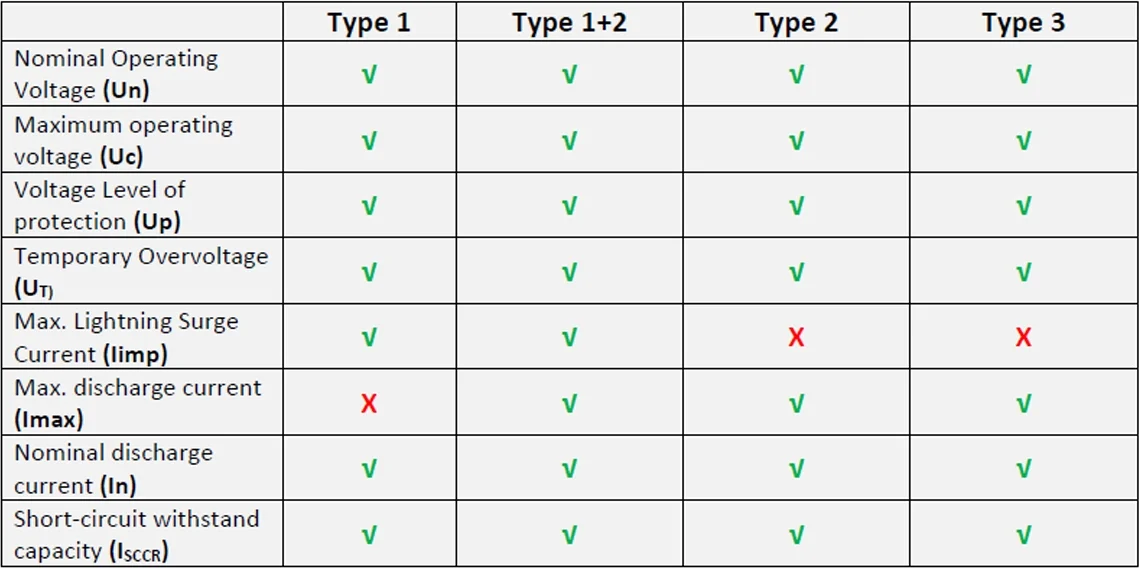

Note: Type 1+2 SPD gives combined protection of Type 1 and Type 2 SPD (Protection against Direct/Indirect lightning strikes) . Hence, for Type 1+2 SPD, Iimp and Imax both the terms get associated

U_P –Voltage Level of Protection

It is the Maximum voltage that can occur across the connection terminals of a SPD.
In the event of surge, when surge current and surge voltage are within the performance parameters of the SPD, the voltage is safely limited to a maximum of this value across the terminals of the SPD.
Up value must be lower than load’s U_imp (Load’s impulse withstand voltage)

In - Nominal Discharge Current

The nominal discharge current (In) is the peak current in 8/20μs wave shape a surge protector can withstand repeatedly (15 surges) without destruction.
In value is always less than Imax value of SPD

U_T-Temporary overvoltage

The temporary overvoltage U_T (TOV) is the maximum r.m.s. value, the surge Protector can withstand for several Seconds, without failure. In SPD, U_T is typically equal to or higher than U_C.

I_SCCR - Short Circuit withstand capacity

I_SCCR indicates the maximum prospective short-circuit current of the electrical network in which SPD is getting connected in conjunction with the upstream overcurrent protective device. Prospective short-circuit current is the highest electric current which can exists in a particular electrical system under short-circuit condition.

I_SCCR of SPD needs to be higher than the short circuit value of the network of at SPD’s installation point.
