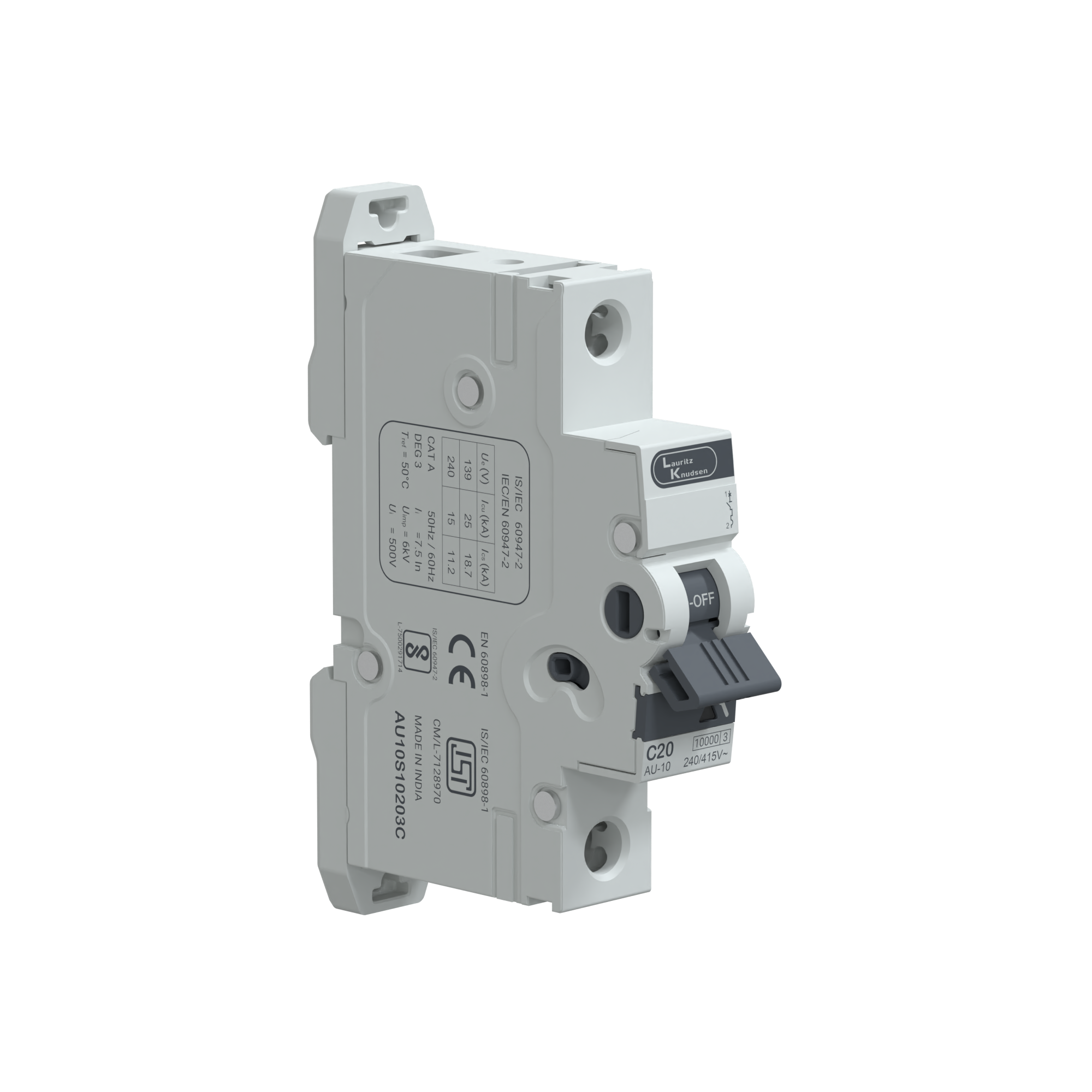

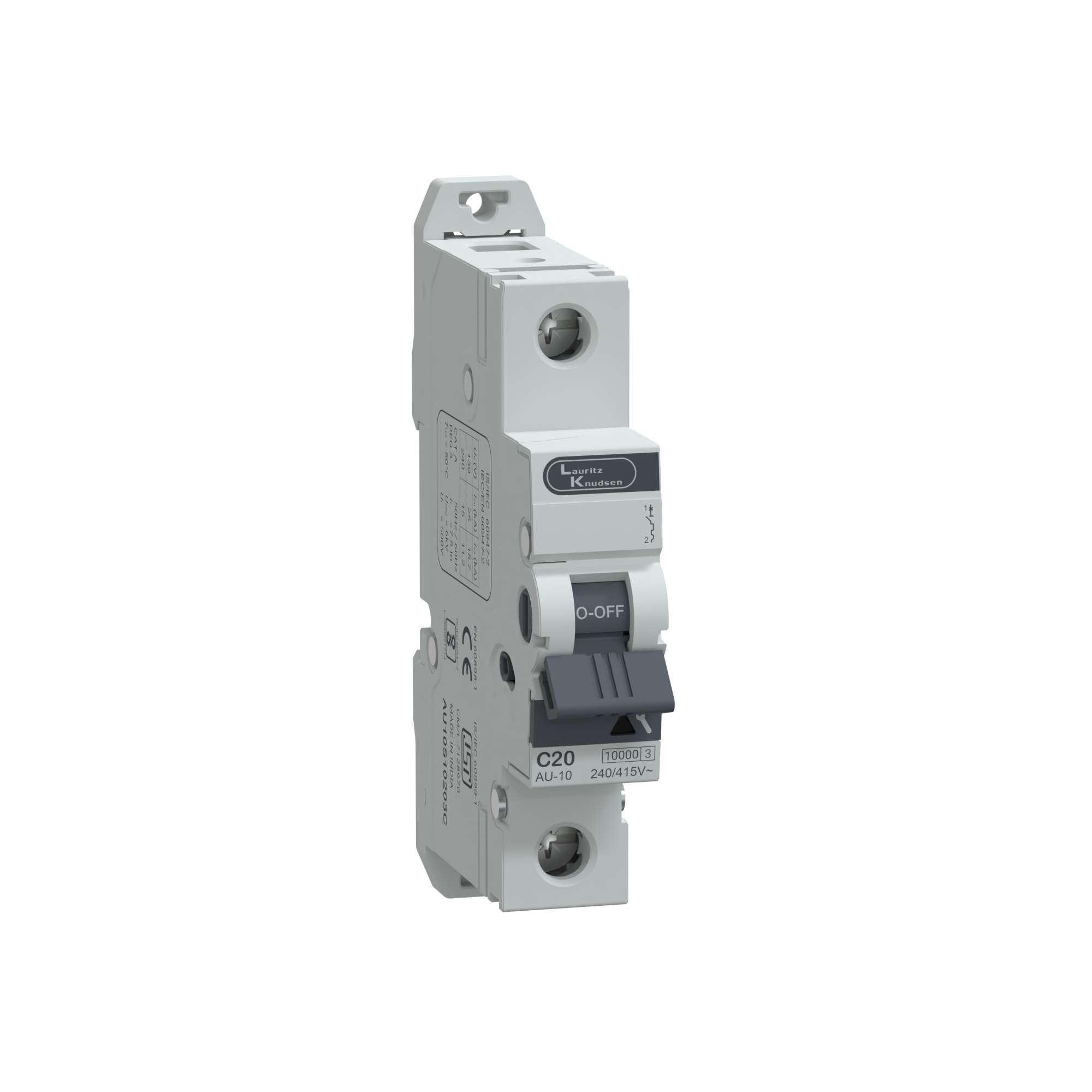

AU-10 MCB 10kA 1P C20
Cat Number
:
 AU10S10203C
The MCB is a vital protection device. It is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

Specifications

General
Short Description
AU-10 MCB 10kA 1P C20
Conformity to Standard
IS/IEC 60898-1, IEC/EN 60898-1, IEC/EN 60947-2
Poles
1P
Frame
1 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz / 60Hz
Rated breaking capacity
10kA as per IS/IEC 60898-1 15kA as per IS/IEC 60947-2
Rated impulse withstand voltage (Uimp)
6kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
240V/415V
Tripping Characteristic
C Curve
Environmental Conditions
Ambient temperature
-25°C to +60°C
Degree of protection
IP20
IP Rating
IP20
Features
Mounting positions
Horizontal/ Vertical/ Flat
Suitable for isolation
Yes
Mounting positions
Horizontal/ Vertical/ Flat
Life
Electrical life-Operating Cycles
20,000
Mechanical life-Operating Cycles
20,000
Physical Dimensions
Height
100.6
Width
17.5
Depth
77.5
Termination
Termination capacity
35 mm2 (Rigid) & 25 mm2 (Flexible)
Tightening Torque
4Nm
