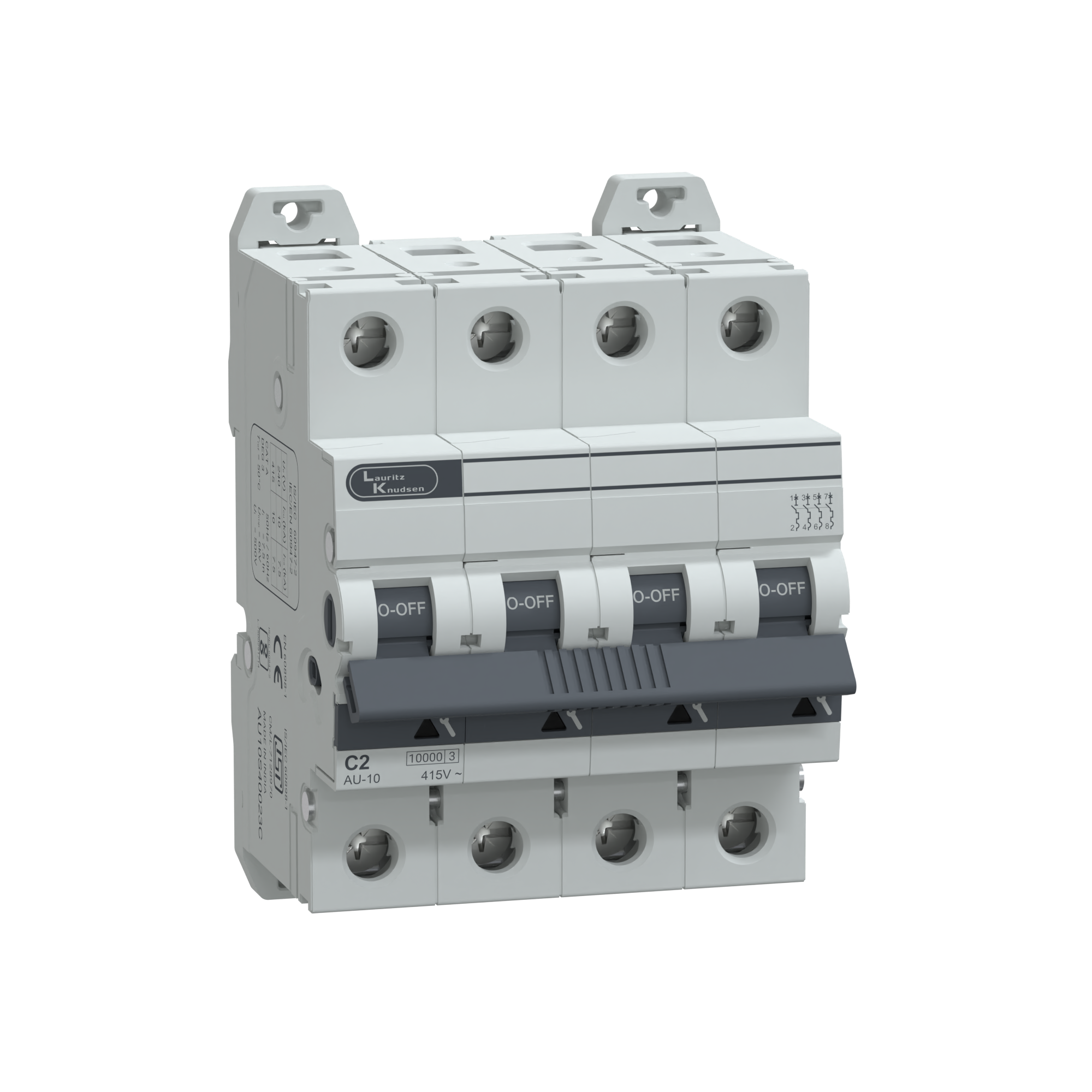

AU-10 MCB 10kA 4P C2A
Cat Number
:
 AU10S40023C
The MCB is a vital protection device. It is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

Specifications

General
Short Description
AU-10 MCB 10kA 4P C2A
Conformity to Standard
IS/IEC 60898-1, IEC/EN 60898-1, IEC/EN 60947-2
Poles
4P
Electrical Characteristics
Operational Frequency (Hz)
50Hz / 60Hz
Rated breaking capacity
10kA as per IS/IEC 60898-1 15kA as per IS/IEC 60947-2
Rated impulse withstand voltage (Uimp)
6kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
415V
Tripping Characteristic
C Curve
Environmental Conditions
Ambient temperature
-25°C to +60°C
Degree of protection
IP20
IP Rating
IP20
Features
Mounting positions
Horizontal/ Vertical/ Flat
Suitable for isolation
Yes
Life
Electrical life-Operating Cycles
20,000
Mechanical life-Operating Cycles
20,000
Physical Dimensions
Height
100.6
Width
70
Depth
77.5
Termination
Termination capacity
35 mm2 (Rigid) & 25 mm2 (Flexible)
Tightening Torque
4Nm
