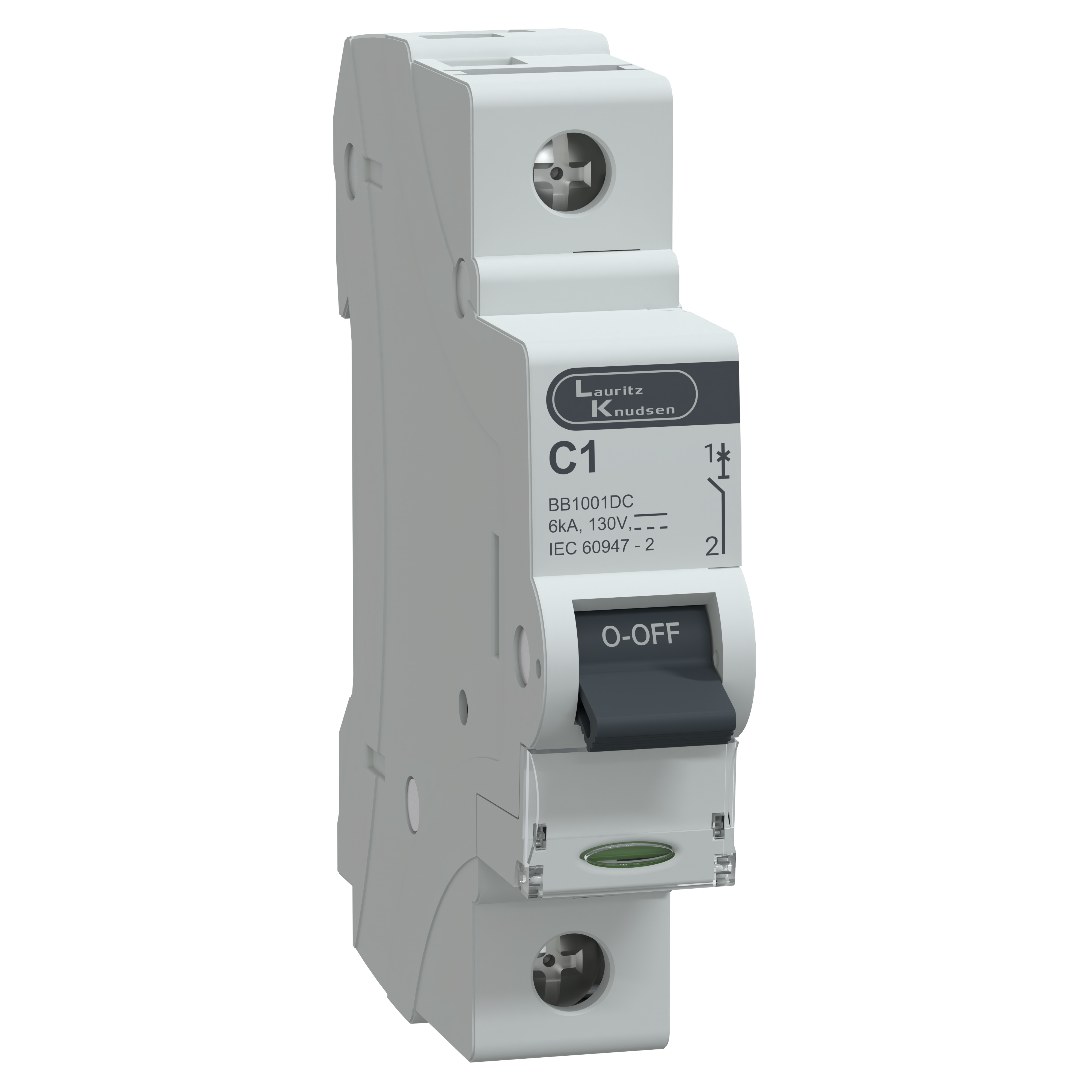

MCB SP 1A 130V DC 6kA
Cat Number
:
 BB1001DC
The MCB is a vital protection device that is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

Specifications

General
Short Description
MCB SP 1A 130V DC 6kA
Conformity to Standard
IEC 60947-2
Poles
1P
Electrical Characteristics
Rated breaking capacity
6kA
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
130VAC
Tripping Characteristic
C Curve
Environmental Conditions
IP Rating
IP20
Life
Electrical life-Operating Cycles
3000
Mechanical life-Operating Cycles
1,00,000
Physical Dimensions
Height
87.3
Width
17.5
Depth
74.5
Termination
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Tightening Torque
4Nm
