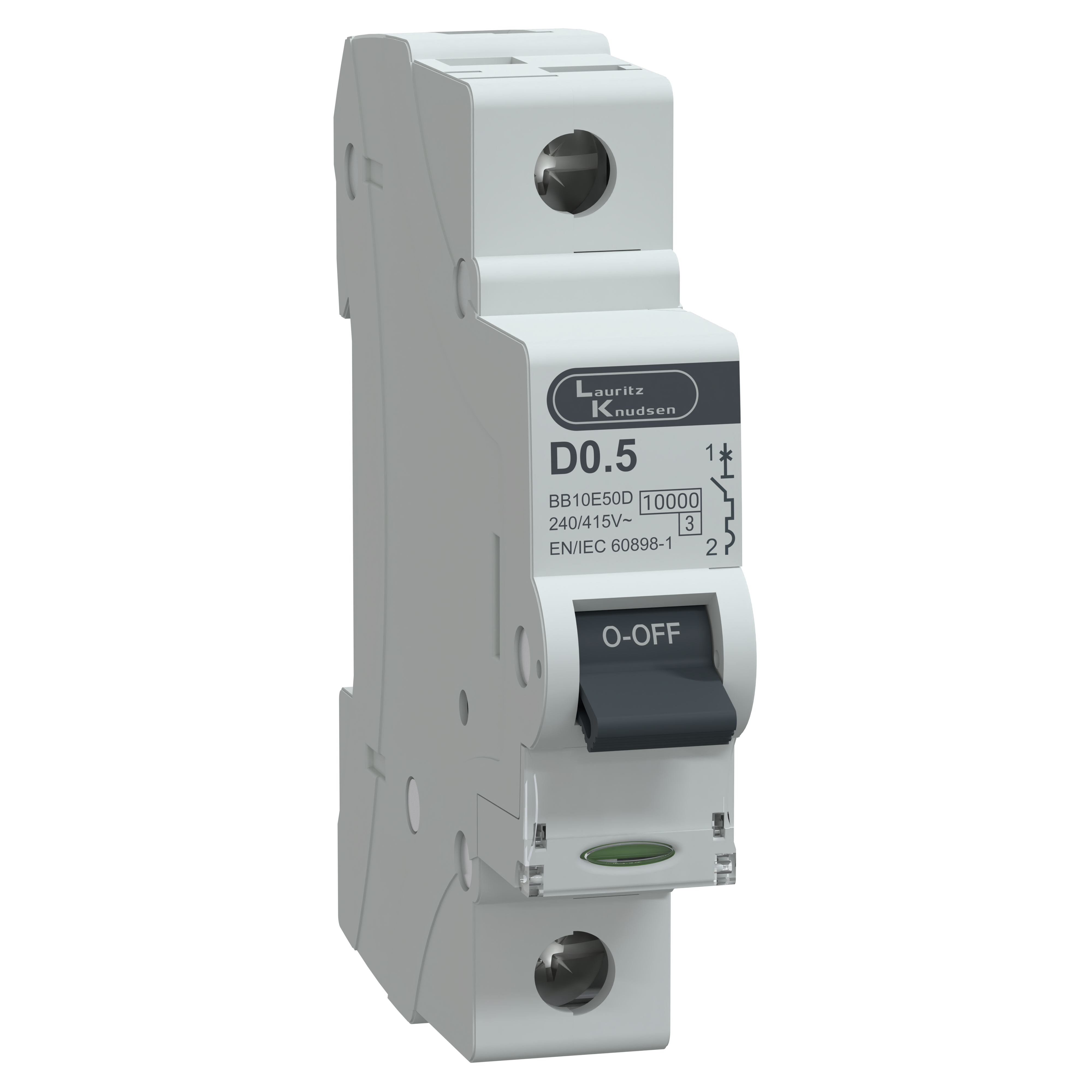

MCB SP 0.5A D-Curve 10kA
Cat Number
:
 BB10E50D
The MCB is a vital protection device that is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

Specifications

General
Short Description
MCB SP 0.5A D-Curve 10kA
Conformity to Standard
IS/IEC 60898-1
Poles
1P
Frame
1 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz / 60Hz
Rated breaking capacity
10kA as per IS/IEC 60898-1
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
240VAC
Tripping Characteristic
D Curve
Environmental Conditions
Ambient temperature
-25 ˚C to 70 ˚C
IP Rating
IP20
Life
Electrical life-Operating Cycles
20,000
Mechanical life-Operating Cycles
1,00,000
Physical Dimensions
Height
87.3
Width
17.5
Depth
74.5
