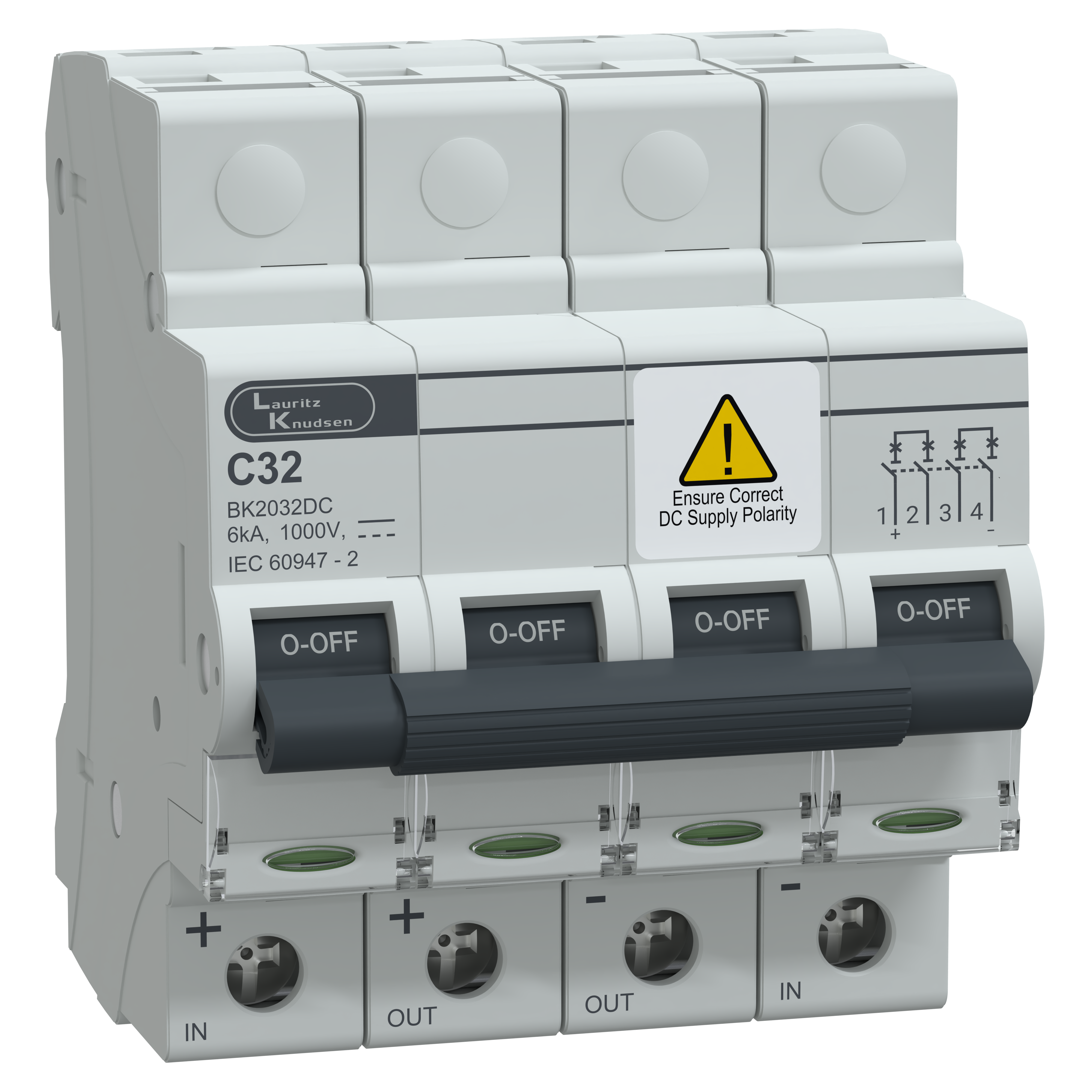

MCB DP 32A 1000V DC 6kA
Cat Number
:
 BK2032DC
The MCB is a vital protection device that is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

Specifications

General
Short Description
MCB DP 32A 1000V DC 6kA
Conformity to Standard
As per IEC 60947-2
Poles
4P
Electrical Characteristics
Rated breaking capacity
6kA
Rated impulse withstand voltage (Uimp)
6kV
Rated insulation voltage (Ui)
500V
Rated operational voltage (Ue)
1000VDC
Environmental Conditions
Ambient temperature
- 25° C to + 70° C
Degree of protection
IP20
IP Rating
IP20
Life
Electrical life-Operating Cycles
3000
Mechanical life-Operating Cycles
1,00,000
Physical Dimensions
Height
87
Width
70
Depth
75
Termination
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Tightening Torque
4Nm
