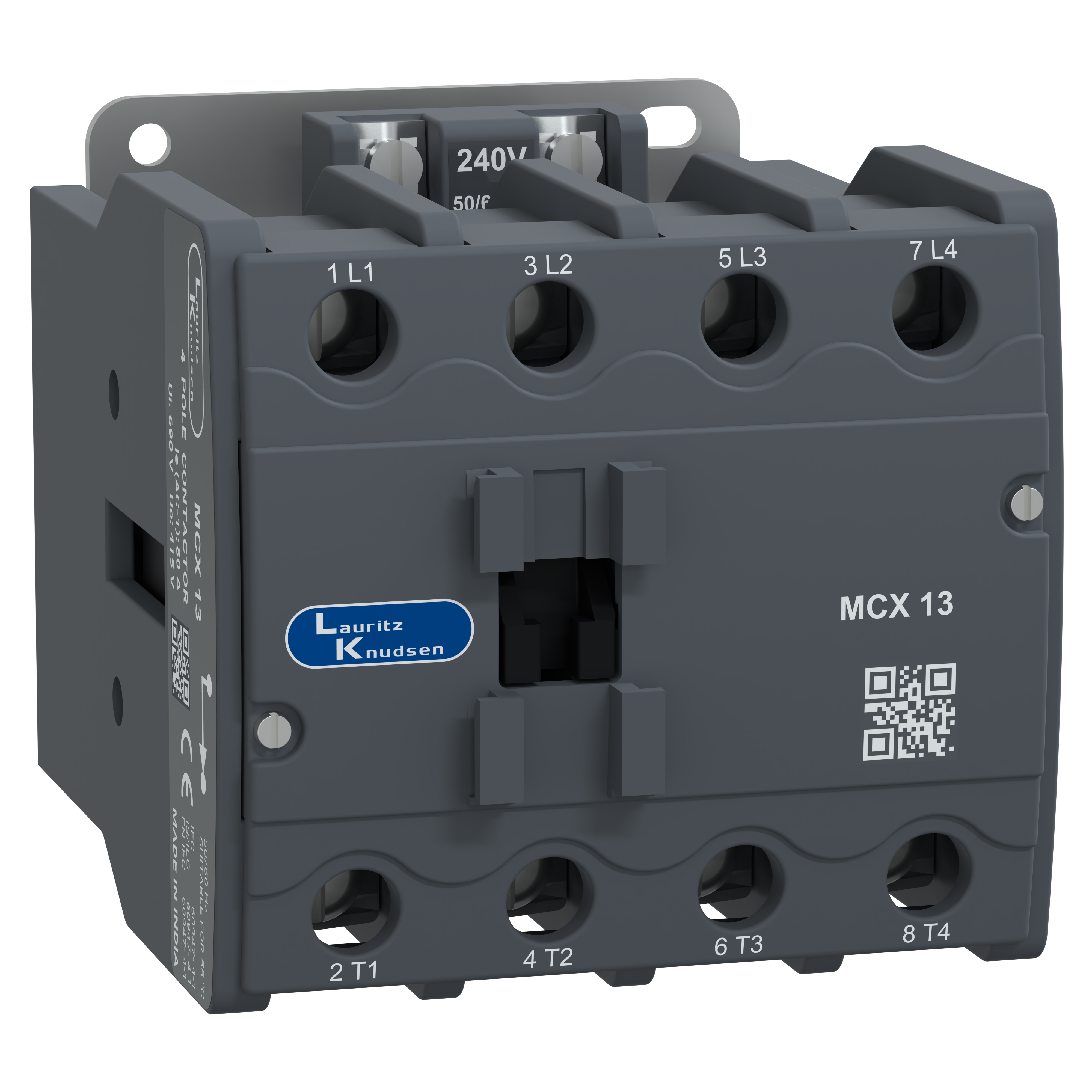

MCX13 Contactor 240V, 50Hz
Cat Number
:
 CS97015BOOO
MCX range of 4 pole contactors is available from 16A to 800A AC-1. The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.

Specifications

General
Conformity to Standard
IS/IEC 60947-4-1, IEC 60947-4-1
Poles
4P
Tertiary Category
Main Unit
Electrical Characteristics
Coil Operating band %Uc (Drop off)
25 - 45 %
Coil Operating band %Uc (Pick up)
50 -110 %
Coil Voltage
240VAC
Hold on VA consumption
22VA
Pick up VA consumption
180VA
Rated impulse withstand voltage (Uimp)
8kV
Rated insulation voltage (Ui)
690VAC
Rated operational current (Ie) (AC-1)
80A
Rated Voltage
NA
KVAR
NA
Environmental Conditions
Ambient temperature
-20 ˚C to 60 ˚C
IP Rating
NA
Physical Dimensions
Height
80
Width
83.5
Depth
91.8
