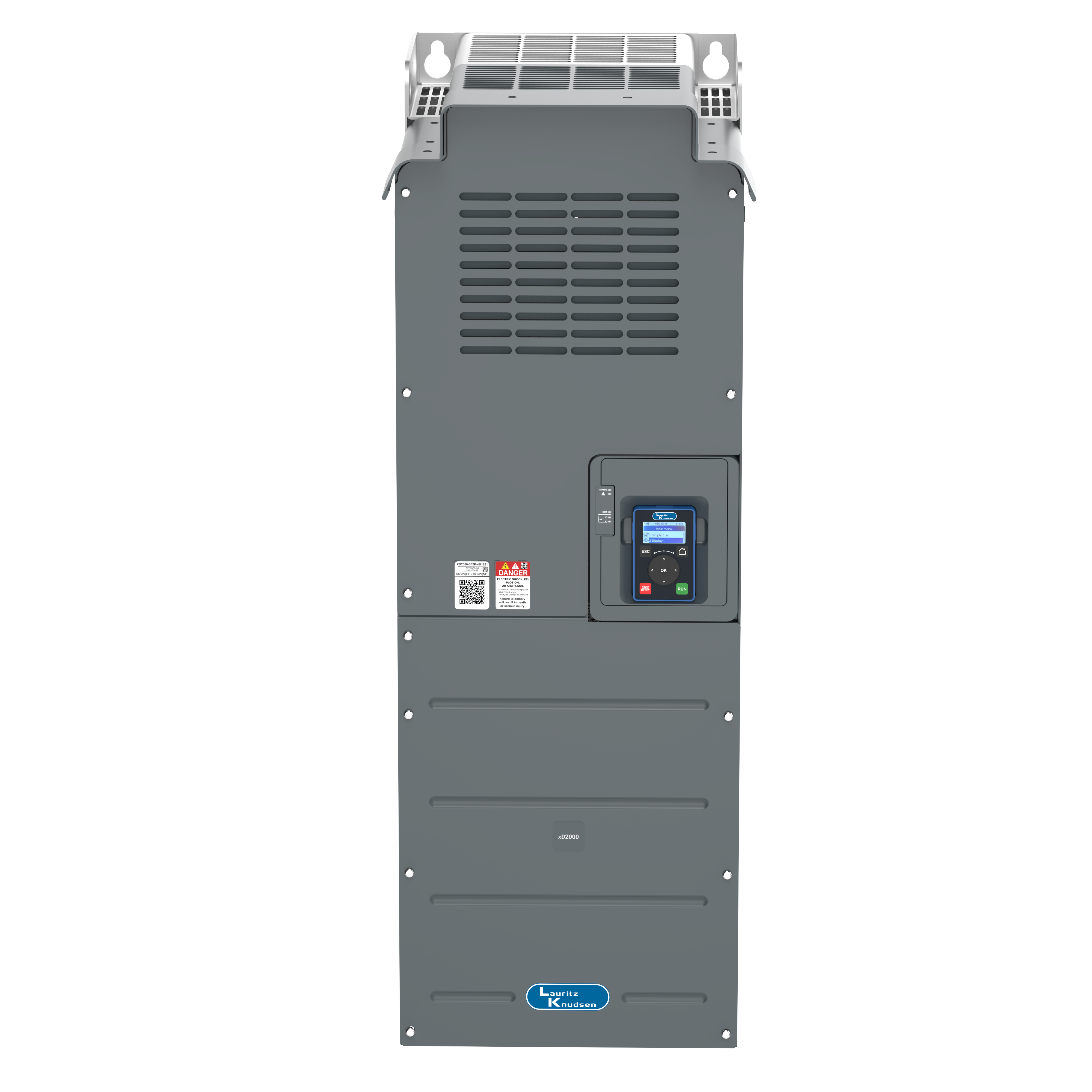

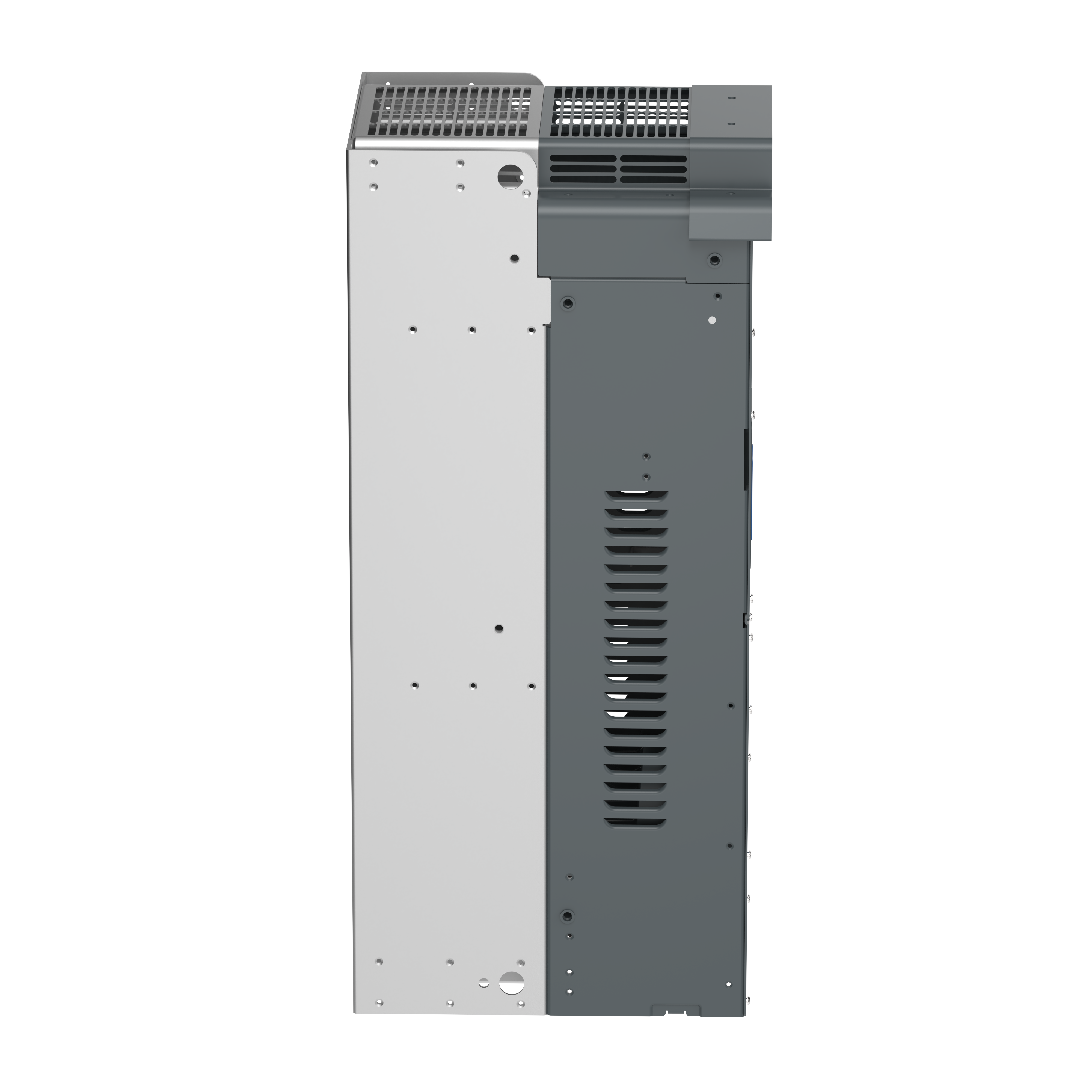

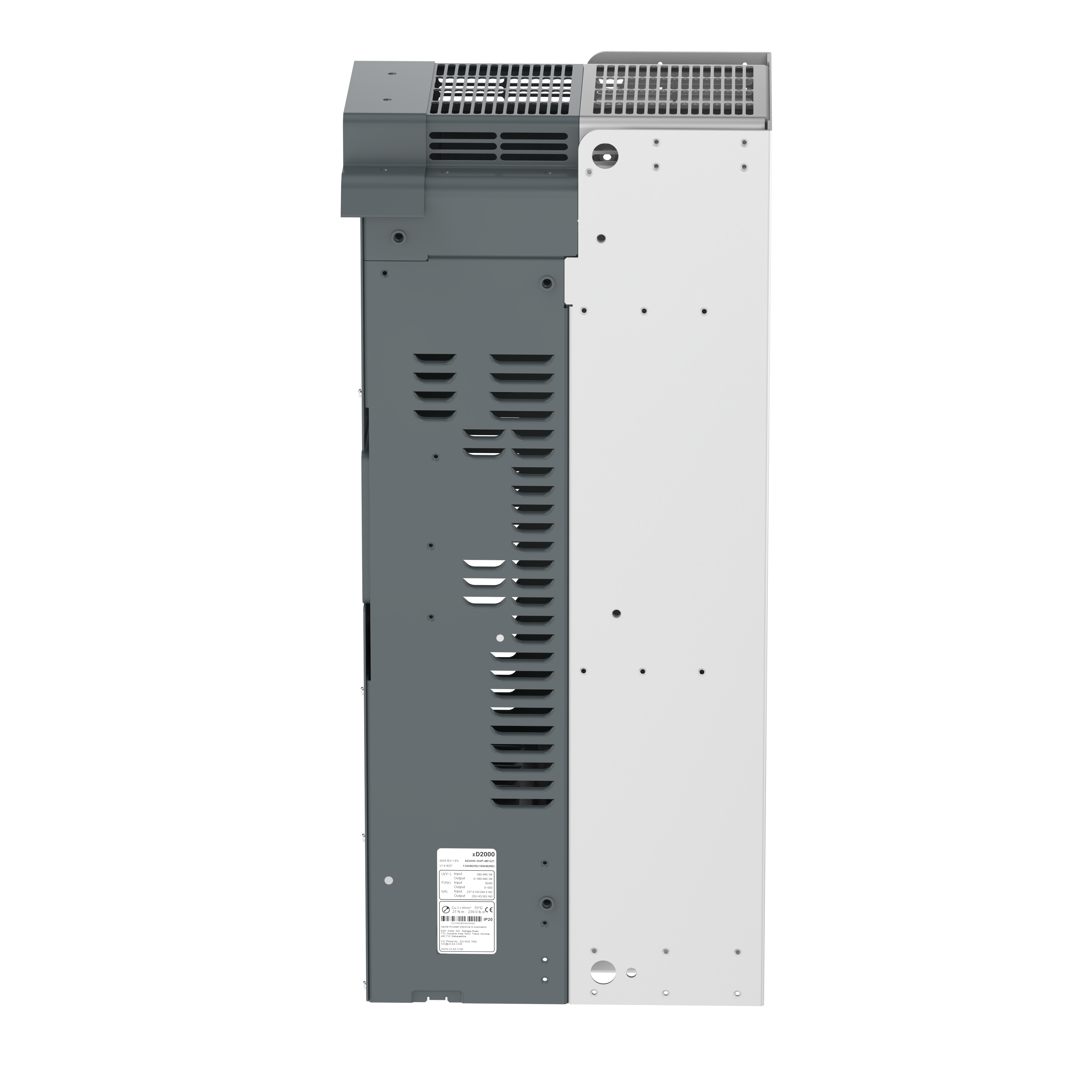

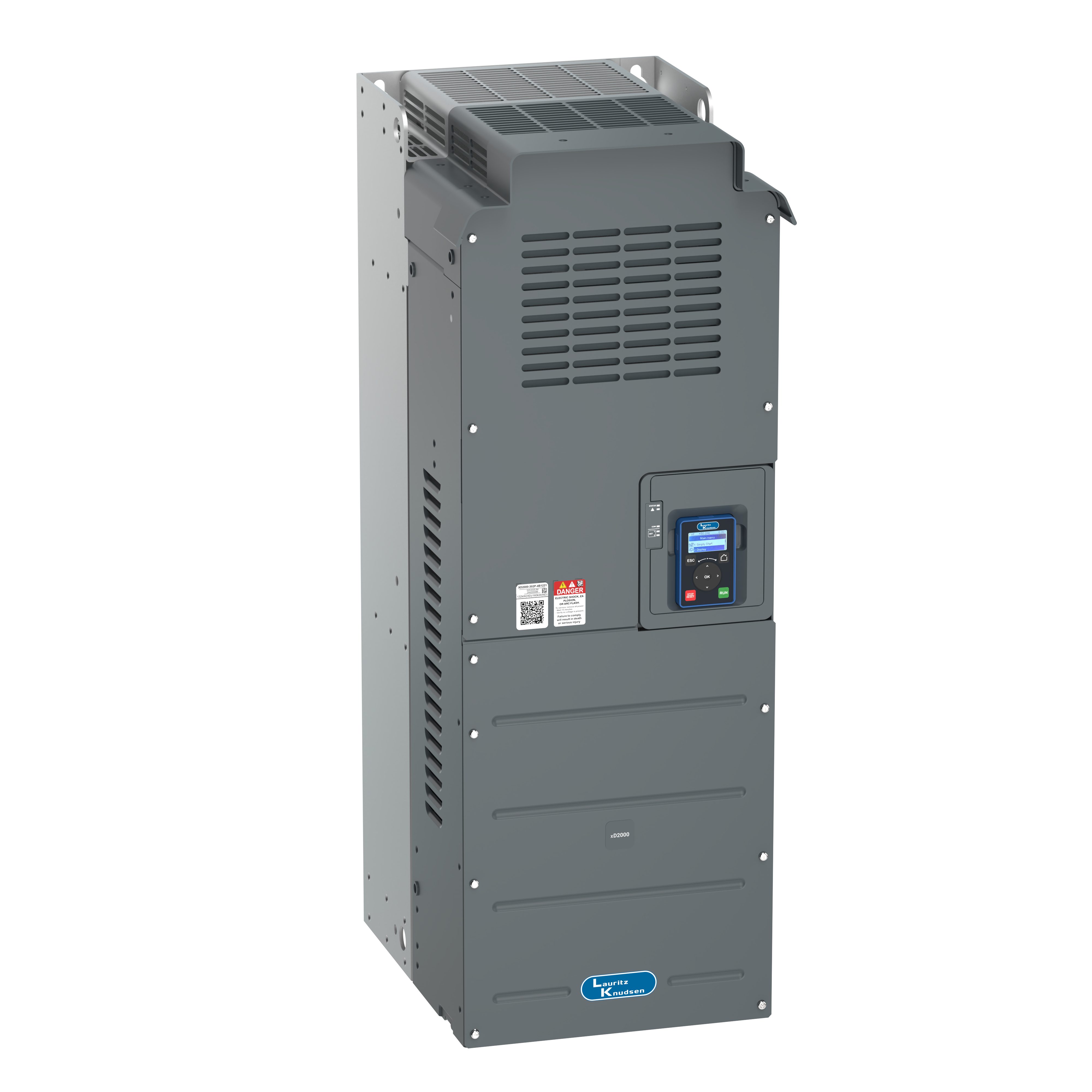

xD2000 415V Drive 90.0kW(HD)/110kW(ND)

Cat Number

:

XD2000-211P-4B1221

This Product is compatible with

Specifications

General

Short Description

xD2000 415V Drive 90.0kW(HD)/110kW(ND)

Conformity to Standard

IEC 61800-3,IEC 61800-5-1,IEC 60721-3

Electrical Characteristics

Rated operational voltage (Ue)

380-460VAC

Rated kW

90.0kW(HD)/110kW(ND)

Environmental Conditions

Ambient temperature

-10 – +50 °C

IP Rating

IP20

Pollution Degree

II

Physical Dimensions

Height

850

Width

300

Depth

375

Weight

85.5
