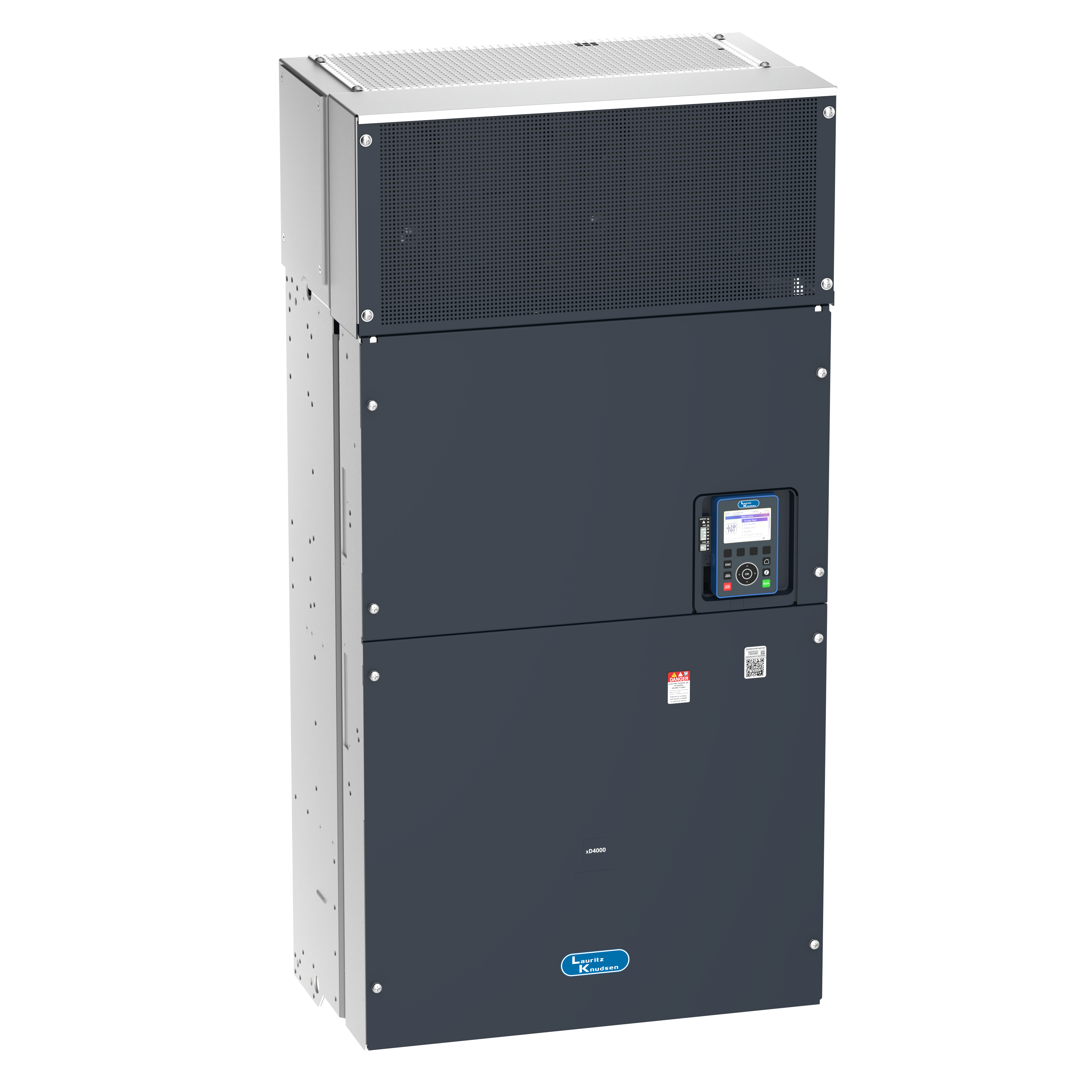

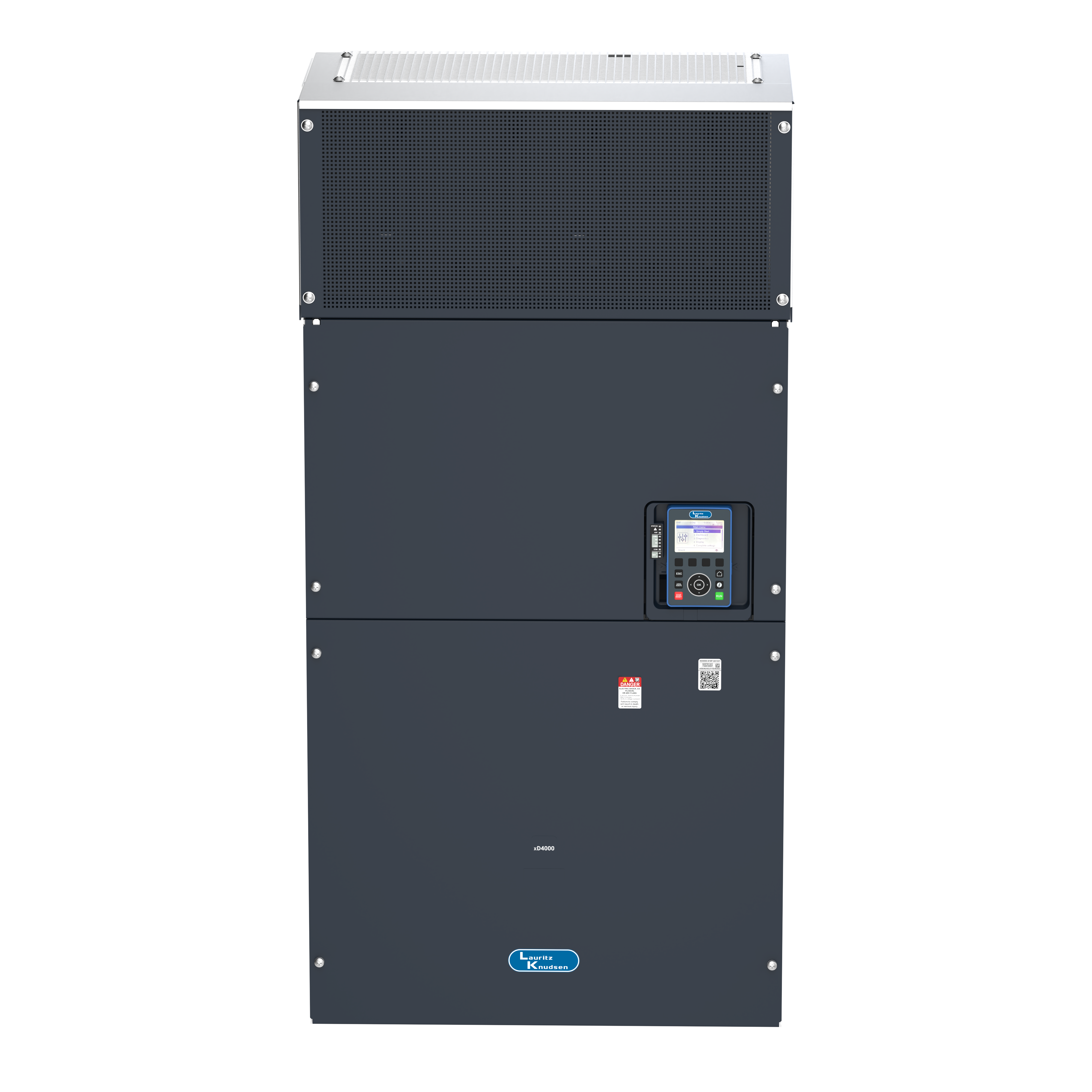

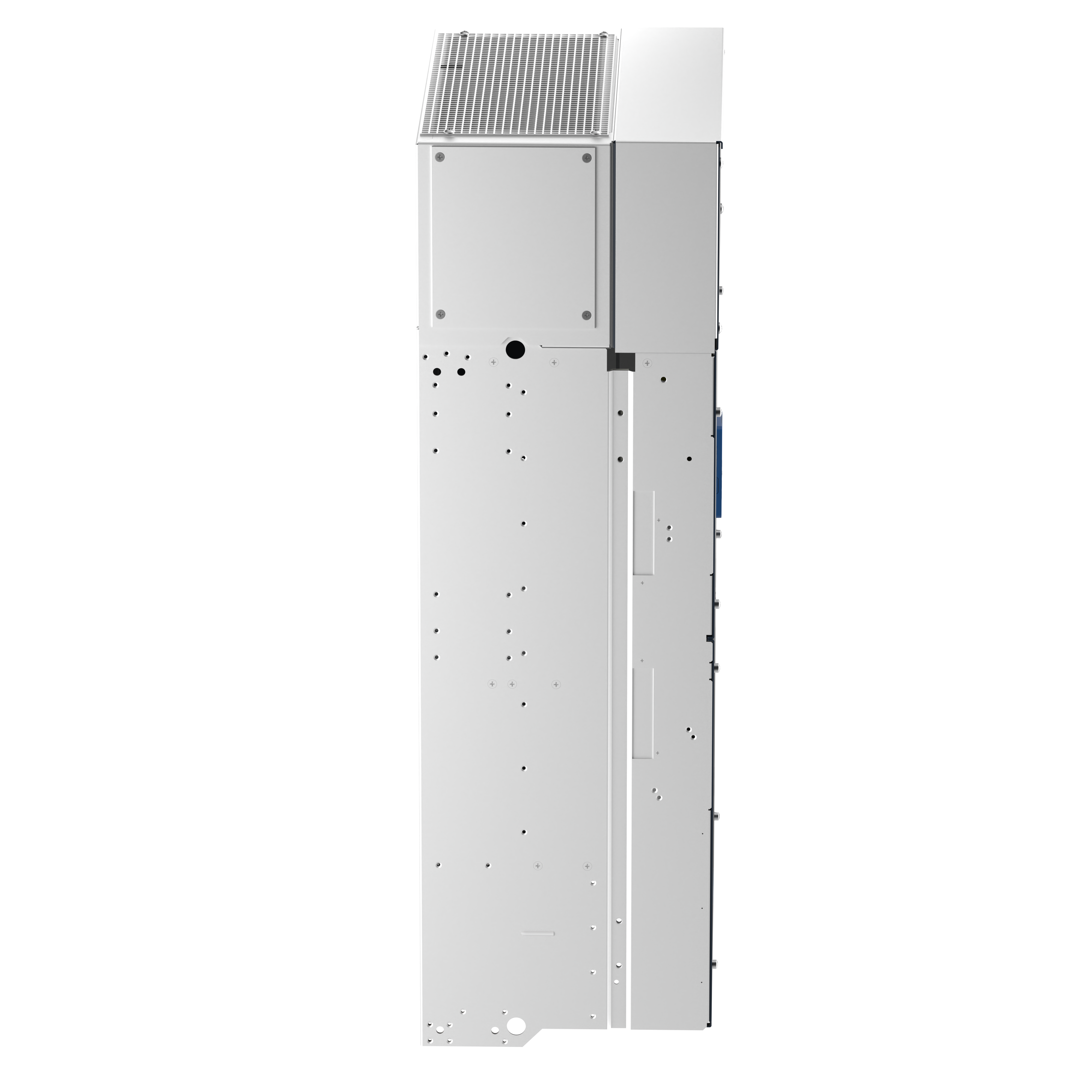

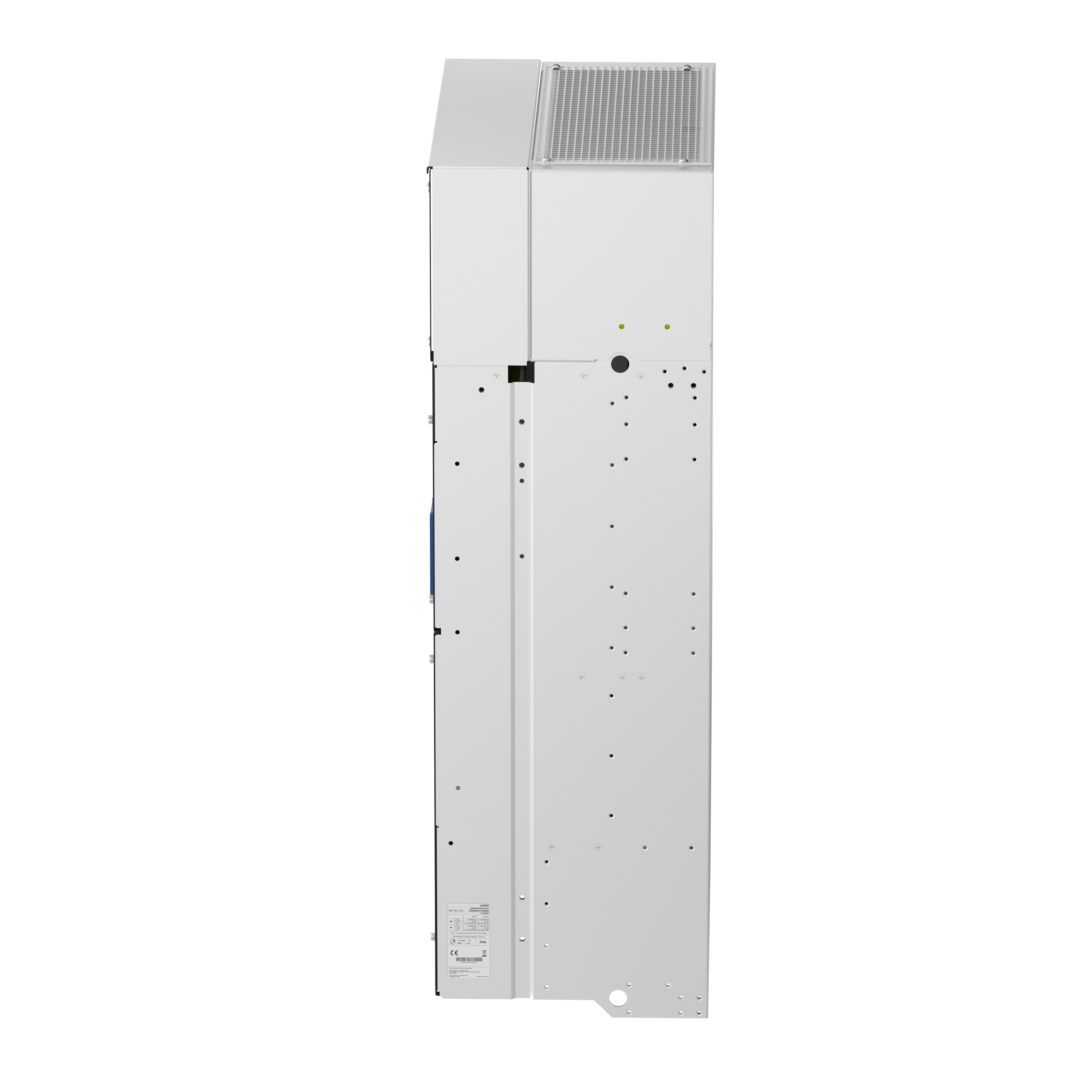

xD4000 415V Drive 250kW(HD)/315kW(ND)
Cat Number
:
 XD4000-616P-4A1221

This Product is compatible with

loader

Specifications

General
Short Description
xD4000 415V Drive 250kW(HD)/315kW(ND)
Conformity to Standard
IEC 61800-3,IEC 61800-5-1,IEC 60721-3,IEC 61000-3-12
Frame
Frame 7
Electrical Characteristics
Rated operational voltage (Ue)
380-480VAC
Rated kW
250kW(HD)/315kW(ND)
Environmental Conditions
Ambient temperature
-15 – +50 °C
IP Rating
IP00
Pollution Degree
II
Physical Dimensions
Height
1195
Width
598
Depth
380
Weight
203
Weight
203
