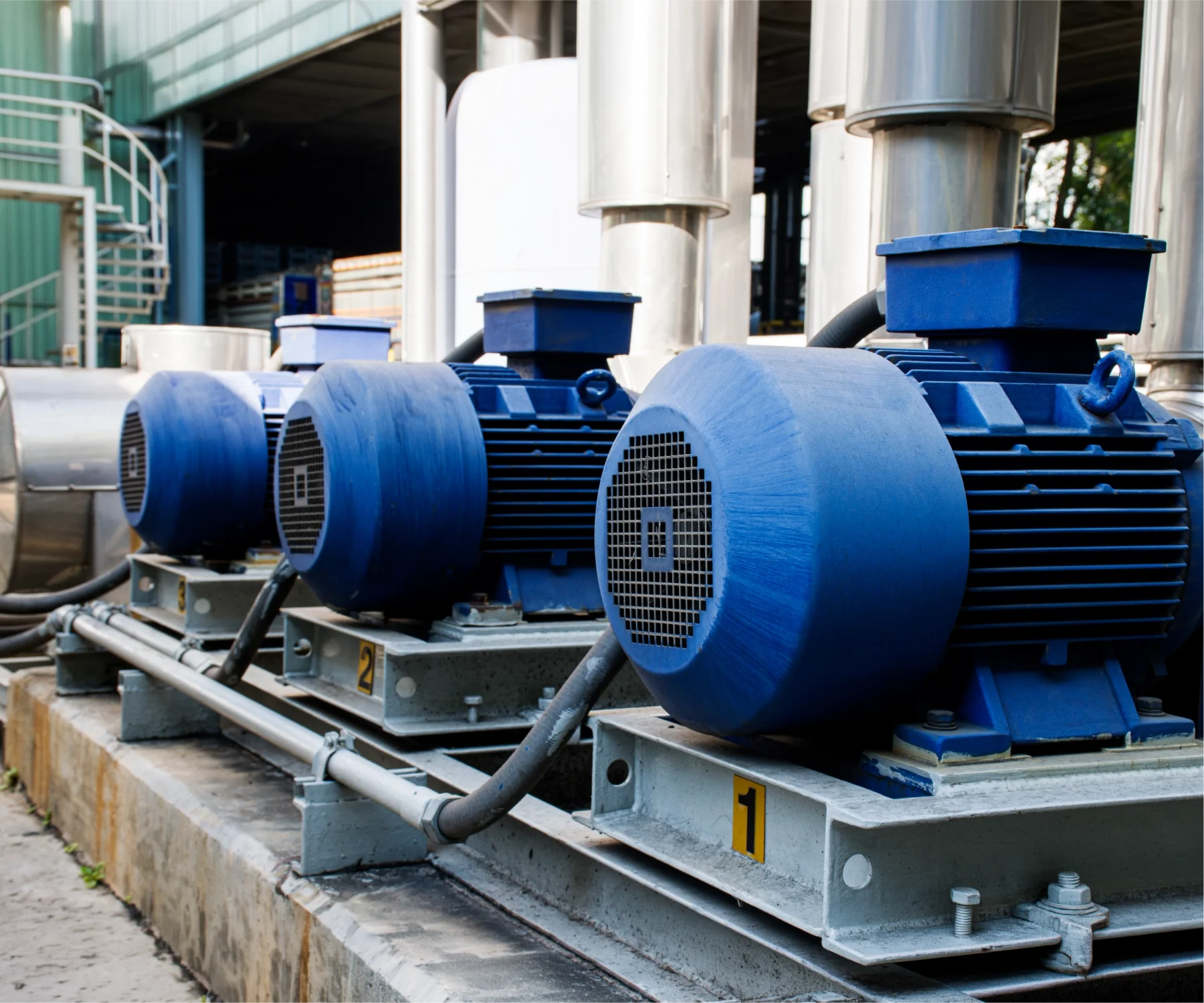

Motor Power Factor Compensation

Updated: Sep 08, 2026 | 6 min read

Technical Articles

Published: Jul 14, 2026 by Abhinav L Purkar

Technical Articles

Click on any topic to jump to that section

The various methods of power factor correction are direct compensation, group compensation and centralized compensation. Depending upon the size and the rate of change of loads in an industry, any one or combination of the above methods can be employed. Specifically, in case of agricultural pump-sets and some small scale industries with a few motor loads, the power factor correction can be done by connecting shunt capacitors directly to the motors. This method of compensation is called direct compensation. This is simple and ideal method for reactive power compensation, as this would result in rating optimization of all the upstream switchgear and cables, which reduces overall system losses.

Direct motor compensation can be done in two methods and this article briefs the configuration and selection of the same.

Method - 1

As shown in the figure, the capacitor is connected directly to the motor terminals, after the starter. The capacitors would start supplying reactive power, as soon as the motor is switched ON. This method of compensation can be used for motors with Direct on-line starters. Usually the kVAr rating for a particular motor is given by the respective motor manufacturers, as the kVAr ratings are motor specific. If the motor manufacturer's data are not available, the below given chart can be referred as a ready reckoner, where M kVAr can be selected for various motor ratings (in HP) and motor rpm:

Even though this is the effective method of power factor compensation, there is a limitation in sizing of the capacitors. That is, the maximum kVAr should be decided such that, the rated capacitor current is less than 90% of the motor's no-load current. If this condition is not met, self-excitation may occur, in which the motor acts as a generator. This happens when a motor has enough inertia to keep rotating even after disconnected from the power system and the capacitor is large enough to supply the reactive power needs of the motor. Self-excitation would result in high voltage available at the terminals of the motor and this can damage the contactor and the capacitor. As this method has the limitation in the sizing of maximum kVAr rating, it is not possible to achieve unity power factor.

MOTOR (hp)	3000 rpm	1500 rpm	1000 rpm	750 rpm	500 rpm
2.5	1	1	1.5	2	2.5
5	2	2	2.5	3.5	4
7.5	2.5	3	3.5	4.5	5.5
10	3	4	5.5	5	6.5
15	4	5	6	7.5	9
20	5	6	7	9	12
25	6	7	9	10.5	14.5
30	7	8	10	12	17
40	9	10	13	15	21
50	11	12.5	16	18	25
60	13	14.5	18	20	28
70	15	16.5	20	22	31
80	17	19	22	24	34
90	19	21	24	26	37
100	21	23	26	28	40
110	23	25	28	30	43
120	25	27	30	32	46
130	27	29	32	34	49
140	29	31	34	36	52
145	30	32	35	37	54
150	31	33	36	38	52
155	32	34	37	39	56
160	33	35	38	40	57
165	34	36	39	41	59
170	35	37	40	42	60
175	36	38	41	43	61
180	37	39	42	44	62
185	38	40	43	45	63
190	38	43	45	45	65
200	40	42	45	47	67
250	45	50	55	60	70

MOTOR (hp)	3000 rpm	1500 rpm	1000 rpm	750 rpm	500 rpm
2.5	1	1	1.5	2	2.5
5	2	2	2.5	3.5	4
7.5	2.5	3	3.5	4.5	5.5
10	3	4	5.5	5	6.5
15	4	5	6	7.5	9
20	5	6	7	9	12
25	6	7	9	10.5	14.5
30	7	8	10	12	17
40	9	10	13	15	21
50	11	12.5	16	18	25
60	13	14.5	18	20	28
70	15	16.5	20	22	31
80	17	19	22	24	34
90	19	21	24	26	37
100	21	23	26	28	40
110	23	25	28	30	43
120	25	27	30	32	46
130	27	29	32	34	49
140	29	31	34	36	52
145	30	32	35	37	54
150	31	33	36	38	52
155	32	34	37	39	56
160	33	35	38	40	57
165	34	36	39	41	59
170	35	37	40	42	60
175	36	38	41	43	61
180	37	39	42	44	62
185	38	40	43	45	63
190	38	43	45	45	65
200	40	42	45	47	67
250	45	50	55	60	70

Method - 2

In this method, the capacitor is connected to the motor before the starter and it is switched through a separate capacitor-duty contactor. As the capacitors are disconnected as soon as the motor is switched off, self- excitation is avoided. Hence, there is no need of any limitations in capacitor sizing and unity power factor can be achieved by this method.

The capacitor size (in kVAr) can be calculated by the below formula:

kVAr = kW (tan Φ 1 - tan Φ 2)

Where Φ1 2 = cos-1 (Initial PF) & Φ2 = cos-1 (Target PF)

The limitations are the manual switching of the capacitors and the extra cost incurred for the contactors. Moreover, when the number of motors increase in future, managing all at a time would be difficult.

Motors with Star-Delta Starter:

Specifically for motor with star-delta starter, it is recommended to use method-2. If capacitors are directly connected to the terminals of the motor, the life of the capacitor drops drastically because of the voltage spikes that happen during every star to delta transition. So it will be safer to connect the capacitor before the star-delta starter, as shown in the above figure.

Points to remember:

The operating power factor varies with respect to the percentage loading of the motors. Hence with the varying load, the fixed capacitors would not be able to maintain the unity power factor continuously.
After switching off the capacitor, it is very important to maintain a minimum time delay of 30 to 60 seconds, for switching ON the capacitor again. Else, there are more chances of contactor damage because of charged capacitor.
If the motor is operated with any drives/converters, it is recommended to detune the capacitors by adding series reactors.
It is recommended to use capacitor duty contactors for minimizing the inrush current and hence to maximize the life of contactors and the capacitors
