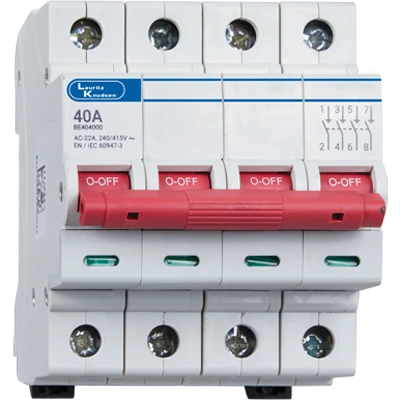

Front Image
40A FP ISOLATOR (switch-disconnector)
Cat Number
:
 BE404000
Isolators are used in electrical installations to make, carry and break circuit current*The Isolator ensures that the circuit remains completely isolated

Specifications

General
Short Description
40A FP ISOLATOR (switch-disconnector)
Conformity to Standard
IEC 60947-3
Poles
4P
Region
India
Electrical Characteristics
Operational Frequency (Hz)
50/60HZ
Rated Current
40A
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated making capacity(A)
3kA
Rated Voltage
415VAC
Environmental Conditions
Environment
RoHS & REACH
IP Rating
IP20
Operating temperature
-5°C to +50°C
Pollution Degree
3
Features
Load-line bias
No
Modules
4M
Mounting positions
Horizontal/Vertical/Flat
Suitable for isolation
Yes
Utilization Category
AC-22A
Features Fields
True Contact Indication, World-class Safety Standards- IEC & CE, Bi-connect Terminals, Line-load Reversibility, Large Terminal size- 35 sq. mm., Non-welding Contacts, DIN rail clip with stay put feature, Finger-proof terminals IP20, Combi head Screw, Low
Life
Electrical life-Operating Cycles
10,000
Mechanical life-Operating Cycles
1,00,000
Physical Dimensions
Height
87.3
Width
70
Depth
75
Weight
0.4
Termination
Termination capacity
35 mm2 (Rigid), 25 mm2 (Flexible)
Tightening Torque
4Nm
