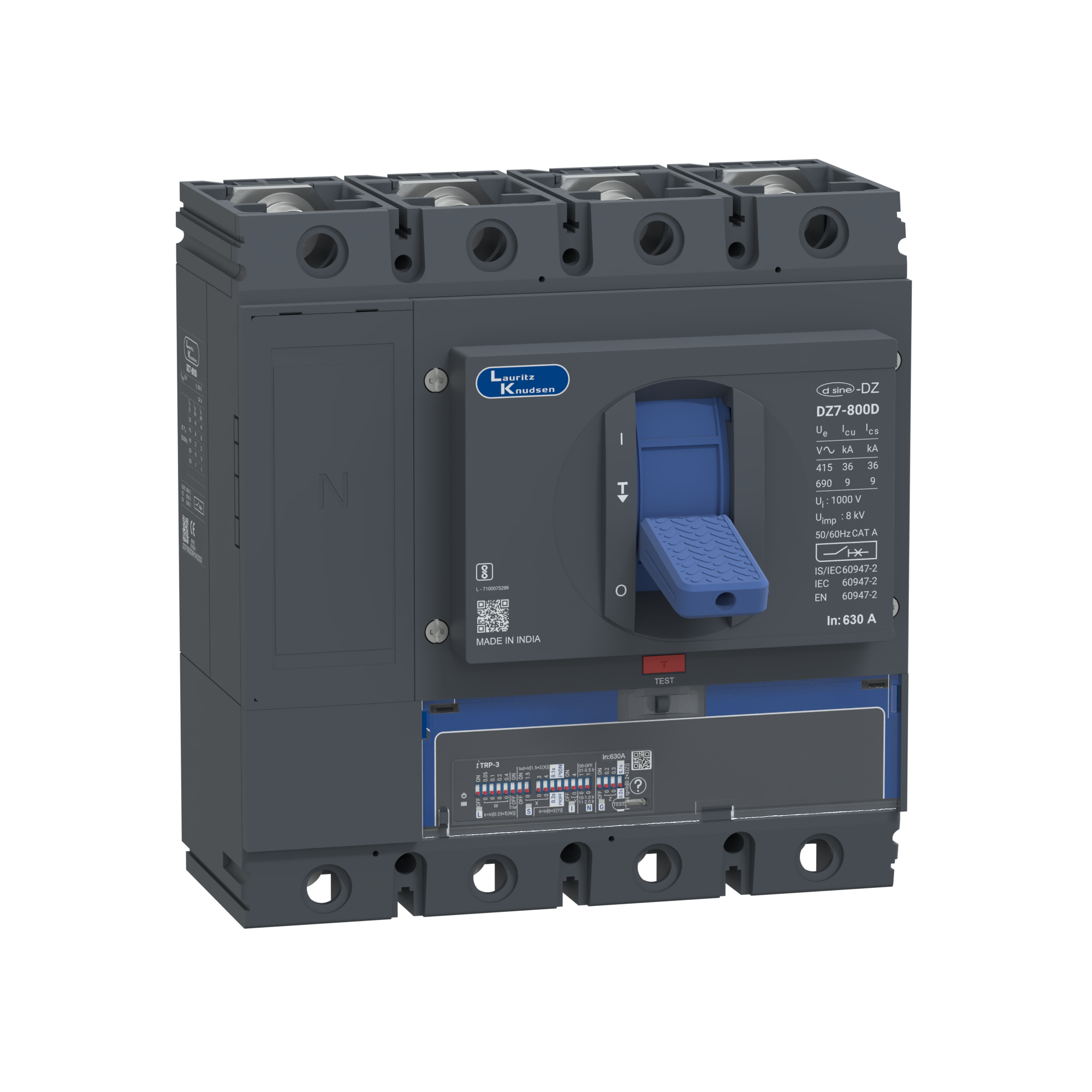

Front Image
MCCB dsine DZ7-800D 630A 4P 36kA iTRP3
Cat Number
:
 DZ7F0630DXH1AOOOO
The DsineDZ Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness. It Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2. The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments. The range can satisfy the most demanding system requirements.The DsineDZ Series, having a wide range of accessories, ensures operational safety, reliability and versatility. The products conform to international standards, carry CE marking.

Specifications

General
Short Description
MCCB dsine DZ7-800D 630A 4P 36kA iTRP3
Conformity to Standard
IS60947-2, IEC60947-2 & EN60947-2
Poles
4P
Frame
DZ7
Certification
BIS, NABL, DEKRA
Type
DZ7D
REACH Declaration
url
RoHS Declaration
blob:https://outlook.office.com/55cdf123-5c71-4eb5-bad4-d3e08554a9dc
Internal Accessories
1.Aux 2.TAC 3.Shunt 4.UVR
External Accessories
1.Rotary Operating Mechanism - Direct 2.Rotary Operating Mechanism - Extended 3.Keylocks 4.Plug-in Module 5.Draw Out Module 6.Electrical Operating Mechanism 7.Phase Barrier
Electrical Characteristics
Operational Frequency (Hz)
50/60 Hz
Rated breaking capacity
36kA
Rated Current
630A
Rated impulse withstand voltage (Uimp)
8V
Rated insulation voltage (Ui)
1000
Rated making capacity
1
Rated operational voltage (Ue)
800
Rated Service circuit breaking capacity
100%
Release
iTRP3
Finger proof Terminals
Yes
Mounted on DIN Rail
Not Applicable
Environmental Conditions
Ambient temperature
-25°C to 75°C for ETU
IP Rating
IP40 and IP54 with Extended ROM
Pollution Degree
III
End Of Life Disassembling Instructions
url
Features
Load-line bias
No
Mounting positions
Vertical and 90° both directions
Release Type
LSING
Suitable for isolation
Yes
Utilization Category
A
Version
Not Applicable
Mounting
yes
Mounting
yes
Mounting positions
Vertical and 90° both directions
Life
Electrical life-Operating Cycles
2500
Mechanical life-Operating Cycles
20000
Physical Dimensions
Height
250
Width
240
Depth
105
Weight
6.9
Mechanical Drawings
URL
Wiring Diagram
C:\Users\SESA815089\OneDrive - Schneider Electric\Maya Pai's files - MCCB PMM Folder\Product Inserts\DZ\MCCB\DZ7.pdf
CAD dimensions
C:\Users\SESA815089\OneDrive - Schneider Electric\Maya Pai's files - MCCB PMM Folder\MCCB STP Files\DY & DZ\DZ7\dz7_4P_f0800zxf1aoooo_asm.stp
Weight
6.9
Package Level 1 Units
1
Package Level 1 Width
295
Package Level 1 Height
290
Package Level 1 Depth / Length
365
Package Level 1 Gross Weight
12.616
Termination
Terminal capacity
30mm to 50mm wide
Tightening Torque
70 Nm
Termination Type
1.Terminals with Spreaders 2.Terminals with Rear Terminals 3.Short Terminal shroud 4.Long Terminal shroud
Container Information
Package Level 1 Units
1
Package Level 1 Width
295
Package Level 1 Height
290
Package Level 1 Depth / Length
365
Package Level 1 Gross Weight
12.616
