Advance Multifunction Meters

Efficient Energy Tracking with EM101+

Overview

Our Advanced Multifunction Meters, the epitome of comprehensive monitoring solutions. These meters not only cover all basic parameters but also excel in expert load monitoring, offering Total Harmonic Distortion (THD) and individual harmonics measurement up to the 31st order for Voltage and Current. With Maximum Demand measurement and Real-Time Clock, precise energy consumption insights are at your fingertips. The phase-wise Voltage and Current waveforms displayed on the LCD meter provide real-time critical data visualization, while the "My Favourite" screen option lets users tailor the display to their specific needs. Additionally, the independently programmable Analog output allows for versatile configurations, making it a must-have for various setups. Moreover, choose from RS485 and Ethernet options available in both LED and LCD screens.

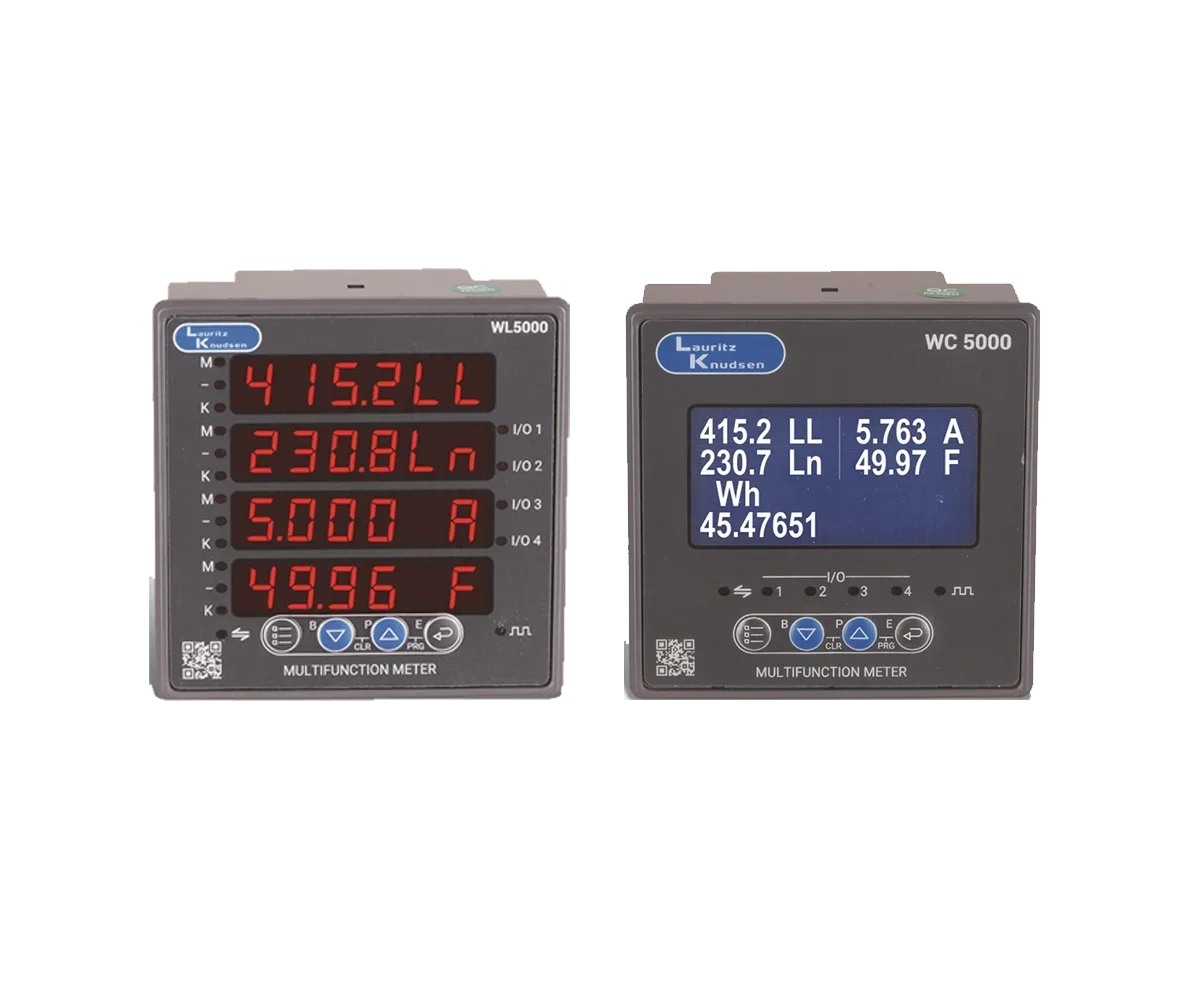

Range

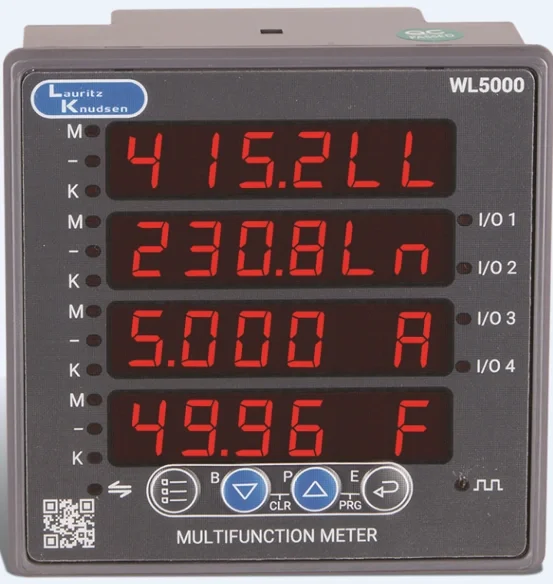

WL5000 Advanced Multifunction Meter with Data logger

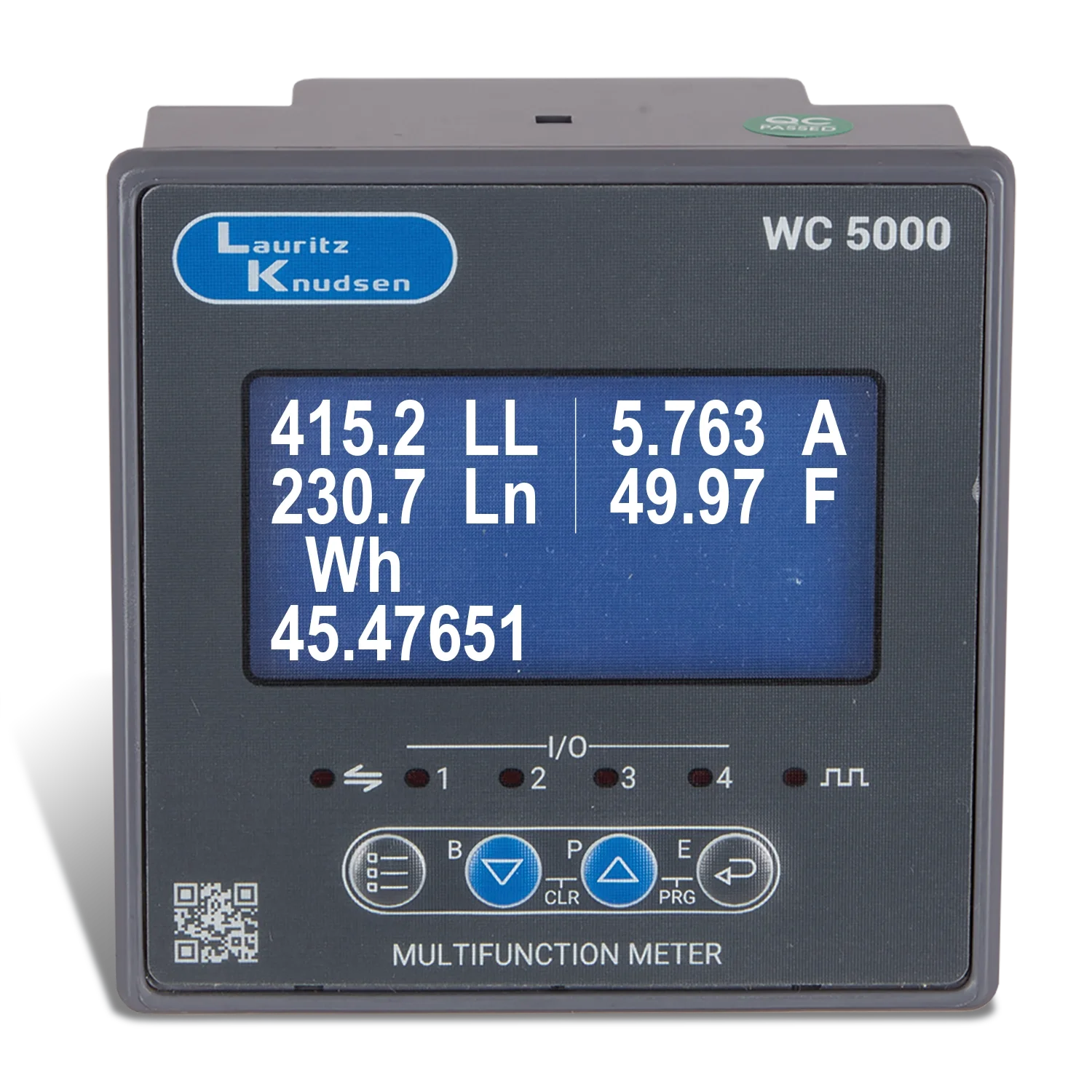

WC5000 Advanced Multifunction Meter with Data logger

WL5010 Advanced Multifunction Meter

Benefits

Real-time Monitoring

Provides immediate visibility into electrical parameters, allowing for quick decision-making and proactive troubleshooting.

Accuracy

Offers precise measurement of various electrical parameters, ensuring reliable data for monitoring and control.

Versatility

Capable of monitoring a wide range of parameters including voltage, current, power, energy, and more, making them suitable for diverse applications.

Easy Integration

Can be seamlessly integrated into existing electrical systems, offering flexibility and convenience.

Enhanced Safety

Contributes to improved operational safety by providing accurate data for monitoring and maintaining electrical systems.

Remote Monitoring

Some digital panel meters support remote monitoring capabilities, enabling monitoring from a centralized location.

Data Logging

Capable of recording and storing historical data, which is valuable for analysis, diagnostics, and compliance purposes.

Features

Configurable for 3 Phase 4 Wire, 3 Phase 3 Wire, 1 Phase
LED & LCD Display options
Accurate Measurement as per IEC62053-21 & 22. (Class 1, 0.5, 0.5s, 0.2,0.2s)
128 Samples per Cycle
Site Selectable Configuration
Can be used for LT / HT Connections
With & Without Communication – RS485 or Modbus TCP/IP
AC/DC (Universal) Aux Supply
Parameter Auto Scrolling & Freeze Mode
Password Protection
DIDO/AIAO Option available (in Selected Models)
Direct Navigation to Basic, Energy & Power Parameters

Specifications

Auxiliary circuit: 80 - 300VAC/DC (for AC @ 40Hz to 60Hz).
Measuring circuit: Input voltage – 50 – 520VLL Input Current: 1A / 5A Site Selectable
Communication: RS485 or Modbus TCP/IP
Pollution Degree: 2
Protection: IP54 at Front & IP 20 at Terminal
Operating temperature: -10 Deg C to +55 Deg C.
Storage Temperature: -25 Deg C to +70 Deg C.
Humidity: 5% to 95% relative humidity non-condensing
Certification: CE & ROHS
