What Should I Check Before Approving an ACB Retrofit Proposal?

Approving an ACB retrofit sounds like a technical formality. In reality, it’s a decision that can quietly shape the safety and efficiency of an entire electrical system. Many plant managers rush through proposals, trusting specifications without really understanding the bigger picture. Think about this- one overlooked parameter today can mean unexpected downtime tomorrow.

Before you sign off, it helps to step back and ask a simple question: What is air circuit breaker technology actually doing for your setup? Knowing the ACB full form is useful in electrical terms, but practical understanding matters more. When you review an air circuit breaker upgrade proposal with clarity, you are not just approving equipment. You are protecting operations, budgets, and people.

Let’s slow down for a moment. If someone asks what is air circuit breaker, most answers sound like textbook definitions. But in everyday industrial environments, it’s simply the frontline defender against overloads and short circuits.

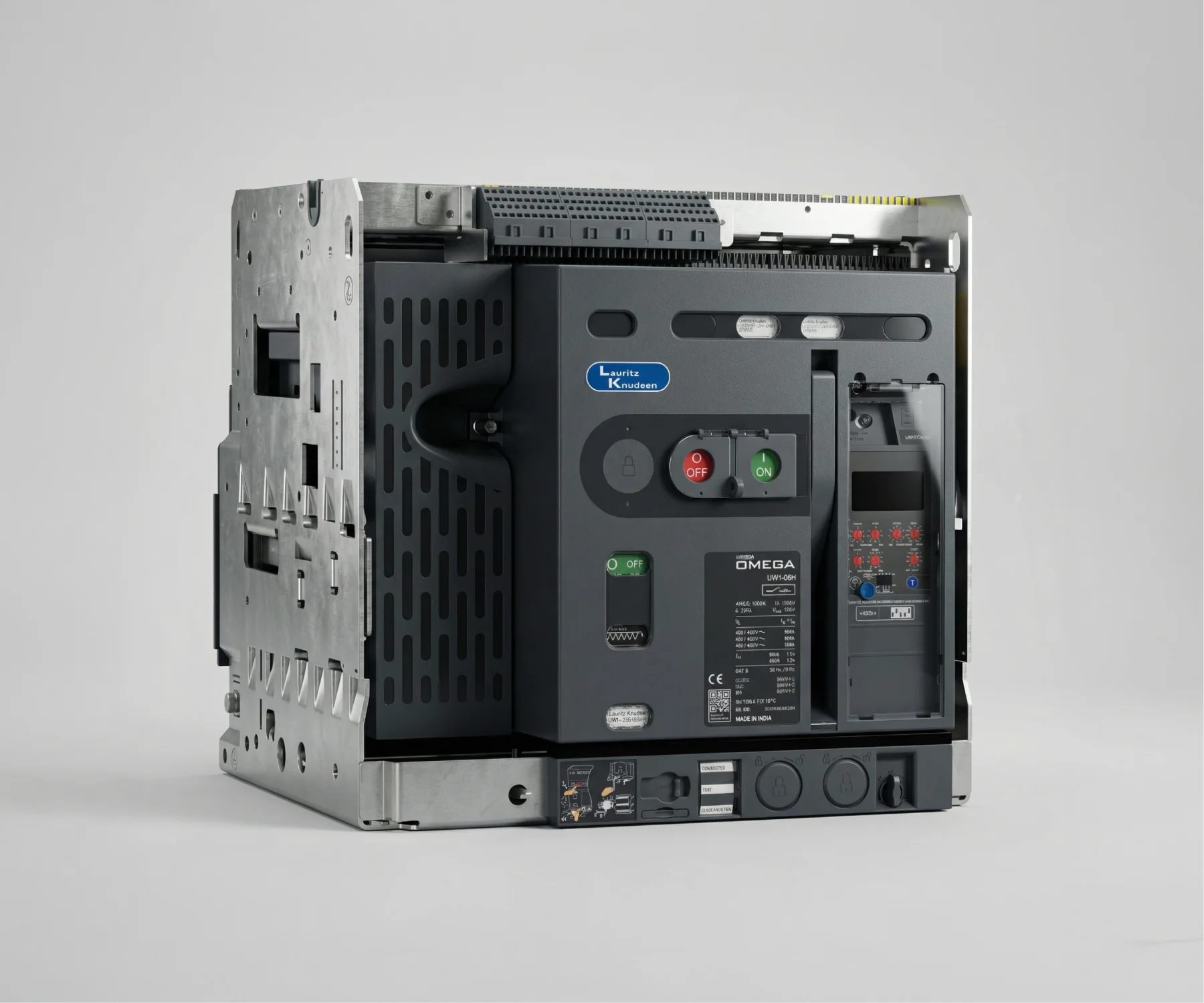

The ACB full form in electrical systems stands for Air Circuit Breaker. It is a device designed to interrupt fault currents using air as the arc-quenching medium. ACBs are typically used in low-voltage systems with service currents ranging from 800 A to 6300 A. This makes them ideal for heavy-duty industrial and commercial applications.

An ACB circuit breaker is typically used in low-voltage power distribution panels where reliability is non-negotiable. For example, large manufacturing plants rely on these breakers to isolate faults quickly without damaging connected equipment. What many people don’t realise is that understanding its functionality helps decision-makers evaluate retrofit feasibility more realistically.

Understanding how air circuit breaker works can change how you view retrofit proposals. Instead of seeing a list of parts, you start seeing system behaviour. Think about fault interruption, contact separation, and arc control. These are not abstract ideas. They directly influence performance, maintenance cycles, and long-term reliability.

Arc Formation and Interruption

When a fault occurs, contacts inside the breaker separate, and an arc forms instantly. The mechanism controlling this process is central to how air circuit breaker works. Air channels and arc chutes guide and cool the arc until it extinguishes safely. In practical terms, this prevents thermal damage to busbars and cables. For retrofit planning, understanding this process helps evaluate whether new technology improves interruption speed and safety margins. Modern ACBs further improve this process using blowout coils or magnetic arc movement, which actively push the arc into the arc chute. This ensures faster arc extinction and improved safety under high fault conditions.

Protection Coordination and Tripping Logic

Protection isn’t just about stopping current. It’s about stopping it intelligently. Modern systems refine how air circuit breaker works through electronic trip units that monitor load patterns continuously.

These trip units typically support LSIG protection functions:

• L- Long-time protection (overload)
• S- Short-time protection
• I- Instantaneous protection (short circuit)
• G- Ground fault protection

For example, selective tripping ensures only the faulty section disconnects. This coordination reduces downtime dramatically. During retrofit evaluation, engineers should verify the compatibility of trip curves with existing protection schemes to avoid nuisance tripping or delayed fault isolation.

Retrofitting isn’t always about replacing old equipment. Sometimes it’s about unlocking hidden efficiency. The benefits of ACB retrofit become clearer when you compare ageing mechanical systems with modern intelligent breakers. From safety upgrades to digital monitoring, these improvements often deliver returns that go beyond simple compliance requirements.

Improved Operational Safety

One of the biggest benefits of an ACB retrofit is enhanced safety. Older breakers may still function, but their fault-clearing performance can degrade subtly over time. Modern retrofits reduce fire risk due to improved arc quenching systems and advanced contact materials. Think about worn contacts or outdated insulation materials. Modern retrofit kits introduce better arc control and faster interruption capability. This reduces the risk of flash incidents. For industries handling continuous loads, even a small safety improvement can translate into significant peace of mind.

Reduced Maintenance Burden

Maintenance teams often spend hours troubleshooting legacy equipment. Modern ACBs offer higher mechanical endurance (often exceeding 20,000 operations), reducing wear-related maintenance. Here’s where another of the benefits of ACB retrofit shows up. New retrofit solutions usually include modular components, diagnostic alerts, and easier access points. In reality, this means fewer shutdowns for inspection. Predictive maintenance becomes possible. Over time, organisations notice reduced spare part dependency and smoother servicing schedules.

Better Energy Monitoring

Modern retrofits don’t just interrupt faults. They provide data. Advanced metering functions embedded in upgraded breakers support energy optimisation strategies. Among the overlooked benefits, this ability to track load behaviour stands out. Upgraded electronic trip units (ETUs) now support event logging and waveform capture, which is extremely useful for audits, fault analysis, and compliance reporting. Facilities can identify inefficiencies, rebalance loads, and even support sustainability goals. Think about this as moving from reactive protection to proactive power management- a subtle but powerful shift.

Enhanced System Reliability

Reliability is rarely dramatic. It’s quiet. Consistent. That’s why the final key benefits often go unnoticed until failures stop happening. Improved contact materials, refined mechanisms, and digital protection logic all contribute to stable performance. In real industrial scenarios, this translates to fewer unexpected trips and better coordination across panels, making daily operations feel almost effortless.

Before approving anything, it helps to follow an ACB retrofit proposal checklist that feels practical, not theoretical. Many decision-makers skim technical drawings and move on. But slowing down here can prevent expensive mistakes. Reviewing compliance, compatibility, and lifecycle aspects ensures retrofit success instead of post-installation surprises.

Panel Compatibility Assessment

Start with physical compatibility. An essential part of the checklist is verifying whether the new breaker fits within the existing panel structure. Mounting dimensions, busbar alignment, and cable termination space must be reviewed carefully. For example, even minor misalignment can cause overheating. Practical site measurements often reveal issues that drawings miss. So never rely solely on documentation.

Electrical Rating Verification

Matching current ratings and fault levels is non-negotiable. This step ensures ACB retrofit requirements align with actual system load conditions. Decision-makers should confirm short-circuit capacity, breaking performance, and thermal withstand limits. Think about future expansion as well. Installing a breaker that only suits present loads can create constraints later. A thoughtful review here prevents premature upgrades.

Protection Scheme Coordination

Another crucial item in the ACB retrofit proposal checklist is reviewing protection coordination. Trip settings must align with upstream and downstream devices. Otherwise, fault isolation may not occur selectively. Engineers should simulate scenarios or review coordination curves. Meeting the retrofit requirements in this area ensures reliability during real faults, not just during commissioning tests.

Communication and Monitoring Features

Modern breakers often include communication modules for SCADA or building management systems. Evaluating these features is essential. Decision-makers should confirm protocol compatibility, data integration ease, and cybersecurity considerations. When these aspects satisfy the retrofit requirements, facilities gain visibility into power usage- something older systems rarely offered.

Installation Downtime Planning

Retrofit work inevitably affects operations. Planning shutdown windows is another overlooked checklist element. Consider load transfer strategies, temporary supply arrangements, and commissioning timelines. Meeting practical requirements here reduces business disruption. In many industries, even a few hours of unplanned downtime can outweigh equipment costs.

Vendor Support and Lifecycle Assurance

Finally, review vendor credentials. Warranty coverage, spare availability, and service response times should influence approval decisions. A thorough ACB retrofit proposal checklist includes lifecycle assurance, not just product specifications. Think about this- the breaker might last twenty years, but only if technical support remains accessible. Long-term reliability depends as much on partnerships as on hardware.

Thermal Study/ Heat Rise Check

ACBs generate heat during operation. Retrofits can sometimes increase load density inside panels. A thermal study or heat rise analysis ensures that temperature levels remain within safe limits. This also prevents insulation failure or premature ageing.

Mechanical Interlocking Compatibility

Check compatibility with existing interlocking schemes, especially in systems involving changeover arrangements, bus coupler configurations and synchronisation panels Improper interlocking can lead to unsafe switching conditions.

Arc Flash Assessment

Modern ACBs can significantly reduce incident energy levels. Conducting an arc flash study helps evaluate safety improvements and ensures compliance with safety standards while protecting personnel. It also supports the selection of appropriate PPE levels and safer working distances for maintenance teams, reducing on-site risk during operation and servicing.

Also Read: Why Does an MCCB Trip? Causes, Troubleshooting & Prevention

Approving an ACB circuit breaker retrofit proposal is rarely a routine signature exercise. It’s a technical judgement shaped by safety priorities, operational goals, and future expansion plans. When you understand system behaviour, review retrofit benefits carefully, and follow a structured checklist, decisions become clearer.

In the end, thoughtful evaluation saves more than money. It saves time, protects infrastructure, and builds confidence in your power distribution setup.

Explore the ultimate range of air circuit breakers by Lauritz Knudsen Electrical & Automation for durable products at competitive prices.

Why is it important to understand breaker working before retrofit approval?

This is because technical clarity helps you evaluate performance improvements realistically and avoid selecting incompatible solutions.

How long does an ACB retrofit typically take?

It depends on panel complexity and shutdown planning, but most installations range from a few hours to a couple of days.

Can retrofitting improve energy efficiency?

Yes, Modern breakers often include monitoring features that help optimise load distribution and reduce wastage.

What risks arise if retrofit compatibility is ignored?

Possible risks include overheating, nuisance tripping, coordination failure, and unexpected downtime.

Should lifecycle support influence approval decisions?

Absolutely. Reliable vendor support ensures spare availability, maintenance continuity, and long-term system performance.
