Air Circuit Breaker vs. Molded Case Circuit Breaker (MCCB): Key Differences

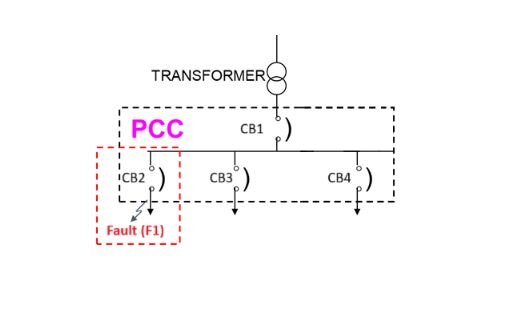

For example, in a typical electrical layout, a large upstream breaker (CB1) protects the main incomer, while smaller downstream breakers (CB2) protect individual loads. If a fault occurs at the load, only the breaker closest to it (CB2) should trip. The upstream breaker (CB1) must withstand the fault current for a short, specified time without tripping to allow CB2 to act first.

●     ACBs are designed for this upstream role, as they have a short-time withstand current (Icw) rating. This makes them a Utilisation Category B device.

●     MCCBs typically do not have an Icw rating and are designed to trip instantly, making them a Utilisation Category A device, perfect for the downstream role.

Discrimination ensures that in the event of a fault, only the breaker closest to the fault trips, isolating the problem while keeping the rest of the electrical system operational. ACBs provide superior discrimination capabilities precisely because of their Icw rating, which guarantees they can handle a high fault current for a specific duration, giving downstream devices the time needed to clear the fault first.

The current rating alone is not the deciding factor. Since both ACBs and MCCBs are available at 800A, the choice depends on a complete analysis of the application. You must consider other critical factors, including:

●     System Position: Is the breaker for an upstream (main) or downstream (final) circuit?

●     Discrimination: Is a short-time withstand (Icw) rating required to coordinate with other breakers?

●     Short-Circuit Capacity: What is the potential fault level (Icu, Ics) at the point of installation?

●     Maintenance & Accessibility: Is serviceability a priority, or is a maintenance-free solution preferred?

The key differences can be broken down into three areas:

●     Range:

-      MCCBs are generally available from 63A to 1600 1250A.

-      ACBs are available in higher ratings, from 400A to 6300A.

●     Utilisation Category:

-      MCCBs are typically Category A, meaning they trip instantaneously and do not have an Icw rating.

-      ACBs are Category B, meaning they have an Icw rating and can withstand fault currents for a set time.

●     Construction:

-      MCCBs are built into a compact, sealed enclosure made of a molded insulating material. Their internal components are not designed to be serviced, making them a maintenance-free, "fit and forget" solution. If a component fails, the entire unit is replaced.

-      ACBs feature an open, modular construction. Their internal parts are accessible for inspection, repair, and replacement. This serviceability is crucial in critical power systems where reliability is paramount.

They continuously monitor the circuit for overcurrents (caused by overloads or short circuits). Upon detecting a fault, their internal mechanism automatically trips, opening their electrical contacts to interrupt the current flow. This isolates the faulty part of the system, preventing damage to equipment and ensuring safety.

When a breaker interrupts a high current, an electrical arc is formed. How this arc is managed is a key design difference:

●     In an Air Circuit Breaker (ACB): The arc is quenched in open air within large arc chutes. These chutes stretch, cool, and divide the arc until it is safely extinguished. Three physical factors aid this process: Speed (fast contact separation), Distance (a widening gap between contacts), and Cooling (as the arc is forced through the chutes).

●     In a Molded Case Circuit Breaker (MCCB): The arc is confined and extinguished within compact, internal arc chambers made of insulating materials. These chambers split the arc into smaller segments, allowing it to cool and de-energise quickly within a sealed unit.

The draw-out feature allows the main body of the circuit breaker to be safely removed from or inserted into its fixed cradle in the panel without disconnecting the main power cables or busbars. This is invaluable as it enables:

●     Maintenance, inspection, and testing to be performed without a complete system shutdown.

●     Quick and easy replacement of a breaker, minimising downtime.

●     Enhanced safety by physically isolating the breaker from the live electrical system.

Yes. While ACBs have sophisticated internal trip units (releases), they can also be operated using external relays. This allows for greater control flexibility and integration into advanced protection schemes or centralised power management systems.

Based on their installation and operation method, ACBs are broadly classified into four categories:

●     Manually Operated Fixed Type (MF)

●     Manually Operated Draw-Out Type (MDO)

●     Electrically Operated Fixed Type (EF)

●     Electrically Operated Draw-Out Type (EDO)

Yes. With the rise of renewable energy, manufacturers now offer dedicated ACBs and MCCBs designed specifically for solar applications. These specialised breakers can handle the high DC voltages found in solar arrays (up to 1500V DC) as well as high AC ratings (800V AC).

The choice between an Air Circuit Breaker and a Molded Case Circuit Breaker is critical for your electrical protection. An ACB is the superior choice for protecting main incomers in large-scale, critical systems, offering both high withstand capability and essential serviceability. In contrast, an MCCB provides cost-effective, reliable, and maintenance-free protection for downstream final circuits and sub-distribution panels. Understanding their differences ensures optimal safety and reliability.
