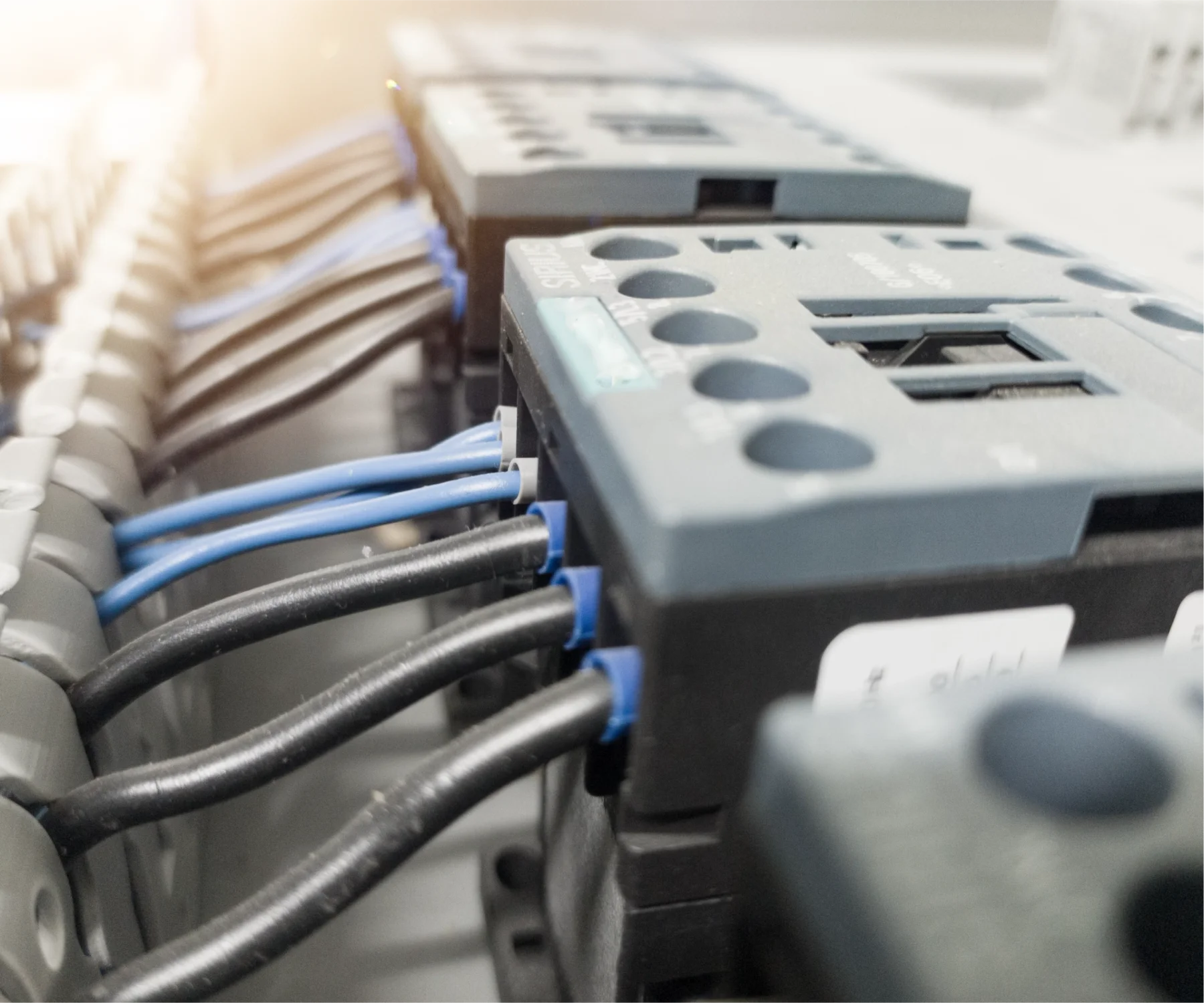

Contactors are most commonly used in applications concerning control of electric motors. They are used to start, stop, reverse, jog and plug the motors depending upon the application requirement. Contactors along with thermal overload relays also provide protection to the motor against overloads.
The most basic data required for contactor selection is the motor HP rating and it's rated current. However this data is alone not sufficient. The type of load, duty cycle of the load, switching frequency are some of the factors that influence contactor selection. The switching capability of contactors is majorly dependent on the type of application, and hence international standards (IEC 60947-4-1) specify utilization categories which cover a broad range of applications. These utilization categories and the data associated with them are used by manufacturers to establish contactor ratings.
| Kind of Current | Utilization Categories | Additional Category Designation | Typical Load |
|---|---|---|---|
| AC | AC - 1 | General use | Non-inductive or slightly inductive loads |
| AC - 2 | Slip-ring motors or mixed resistive and inductive loads, including moderate overloads | ||
| AC - 3 | Squirrel-cage motors: starting, switching off motors during running, reversing | ||
| AC - 3e | Squirrel-cage motors with higher locked rotor current: starting, switching off motors during running, reversing | ||
| AC - 4 | Squirrel-cage motors: starting, plugging, inching | ||
| AC - 5a | Ballast Incandescent | Discharge lamps | |
| AC - 5b | AC incandescent lamps | ||
| AC - 6a | General use | Transformers | |
| AC - 6b | Capacitor banks | ||
| AC - 7a | Slightly inductive loads for household appliances and similar applications | ||
| AC - 7b | Motor-loads for household applications | ||
| AC - 8a | Hermetic refrigerant compressor motor control with manual resetting of overload releases | ||
| AC - 8b | Hermetic refrigerant compressor motor control with automatic resetting of overload releases | ||
| AC - 15 | Control of AC electromagnetic loads | ||
| DC | DC - 1 | Incandescent | Non-inductive or slightly inductive loads |
| DC - 3 | Shunt-motors: starting, plugging, inching, dynamic braking of DC motors | ||
| DC - 5 | Series-motors: starting, plugging, inching, dynamic braking of DC motors | ||
| DC - 6 | DC incandescent lamps | ||
| DC - 13 | Control of DC electromagnetic loads |
MO platform provides switching solutions for all utilization categories mentioned above.
Contactors with an AC-1 rating are intended for applications involving switching of non-inductive or slightly inductive loads. Heating, lighting, switching of power supply in a power panel etc are some of the examples of AC-1 loads.
Contactors with an AC-2 rating are intended for applications involving switching of Slip-ring motors or mixed resistive and inductive loads, including moderate overloads. Some cranes use slip-ring motors.
Contactors with an AC-3 rating are intended for switching of Squirrel-cage motors. The contactor must withstand the high starting current of the motor during making. The breaking will be at rated current of motor during running condition. These contactors can also be used in reversing applications. AC-3 category may be used for occasional inching (jogging) or plugging for limited time periods such as machine set-up. During these limited time periods, the number of such operations should not exceed 5 per minute or more than 10 in a ten minute period. Some examples of this application are Compressors, Pumps, Fans, Conveyors, Mixers, Agitators, Air conditioners, Elevators etc
Contactors with an AC-4 rating are intended for switching of Squirrel-cage motors. The contactor must withstand the high starting current of the motor during making. The breaking will also be at high starting current of motor as it is used in inching or plugging applications. Some examples of this application are Printing presses, Wire drawing machines, Centrifuges etc
The conditions are as given below,
Table (a):
1) For Ie < 17 A, cos Ø = 0.65, For Ie > 17 A, cos Ø = 0.35
Where
| Normal Operation | ||||||
| Utilization Categories | Making Conditions | Breaking Conditions | ||||
| Ic / Ie | Ur / Ue | cosØ | I / Ie | U / Ue | cosØ | |
| AC - 1 | 1 | 1 | 0.8 | 1 | 1 | 0.95 |
| AC - 2 | 2.5 | 1 | 0.65 | 2.5 | 1 | 0.65 |
| AC - 3 / AC - 3e | 6 | 1 | 1) | 1 | 0.17 | 1) |
| AC - 4 | 6 | 1 | 1) | 6 | 1 | 1) |
The making and breaking capacities of contactors are dependent on the utilization categories and the standard specifies that the contactors or starters shall be capable of making and breaking currents without failure under the conditions stated.
Table (b):
1) For 17A < Ie < 100 A, cos Ø = 0.45, For Ie > 100 A, cos Ø = 0.35.
| Occasional Operation (50 Operating Cycles) | ||||||
| Utilization Categories | Making Conditions | Breaking Conditions | ||||
| Ic / Ie | Ur / Ue | cosØ | I / Ie | U / Ue | cosØ | |
| AC - 1 | 1.5 | 1.05 | 0.8 | 1.5 | 1.05 | 0.8 |
| AC - 2 | 4 | 1.05 | 0.65 | 4 | 1.05 | 0.65 |
| AC - 3 | 10 | 1.05 | 1) | 8 | 1.05 | 1) |
| AC - 3e | 13 | 1.05 | 1) | 8.5 | 1.05 | 1) |
| AC - 4 | 12 | 1.05 | 1) | 10 | 1.05 | 1) |
The starting current of a squirrel cage induction motor is 6 times while that of slip ring induction motor is 2.5 times the rated current. Starting current in slip ring induction motor is less because of the higher rotor resistance in the rotor circuit, which can be effectively removed in steps as the motor attains its rated speed.
From the above Table (a) it can be seen that, for AC-3 / AC3e utilization category during normal operation the contactor must be capable of making 6 times the rated current. The current that contactor must break, however remains the rated current. This is because the AC-3 / AC-3e utilization category specifies that the motor is switched off after it starts running.
In the case of AC-4 utilization category, the current, the contactor must be capable of making as well as breaking remains 6 times the rated current. This is because AC-4 utilization category involves plugging and inching operations, in which the motor is switched on and off frequently.
Hence it can be concluded that AC-4 utilization category is more severe than AC-3 / AC-3e and the switching capability of contactors (Operating cycles/Hr) for AC-4 is lower than that of AC-3 / AC-3e.
Table (b) specifies the values of currents the contactor must be capable of making or breaking under abnormal conditions which occur occasionally. Here also it can be concluded that AC-4 utilization category is the most severe among all the other utilization categories.
Also it can be seen that making and breaking capacities for AC-4 category is more than that of AC-3 / AC-3e, clearly highlighting that AC-4 is severe than AC-3 / AC-3e.
Contactor must be selected such that the making and breaking capacities during both normal as well as abnormal conditions must be within contactor making and breaking capacity.
Normal Operation
Abnormal operation
Hence, in both cases, we can select M01 8 which has Rated Current of 18A, Making Capacity of 450A and Breaking Capacity of 350A which is higher than the abnormal making and breaking currents calculated above.
Consider a 10 HP squirrel cage Induction motor with Direct On-Line (DOL) starting.
Rated Current of the motor In = 1 5A
Normal Operation
Abnormal operation
Contactors with an AC-5A rating are intended for applications involving the direct control of electric discharge lamps or other non-motor loads. These contactors are engineered to handle the unique characteristics of inductive loads associated with lighting systems, such as ballasts.
The AC-5B rating for contactors designates their suitability for applications involving the direct control of incandescent lamps.
Contactors with AC-6a rating can be used for switching transformers. Such contactors require high inrush current withstand capability as such currents are expected when switching transformer.
Contactors with AC-6b rating are intended for switching capacitor banks. As there is very high switching surge during switching of capacitors, the contactors are fitted with early make contacts along with current limiting resistors to limit the surge current. Capacitor duty contactors with such resistor blocks have been developed in the MO platform. They are called MOC contactors. Ac-6b rating are available in technical specifications of MOC capacitor duty contactors.
Contactors with AC-7a ratings can be used for slightly inductive loads for household appliances and similar applications. Modular contactors with AC-7a utilization categories are available.
Contactors with AC-7b ratings can be used for Motor-loads for household applications. Modular contactors with AC-7b utilization categories are available.
This category is specifically for contactors designed for use in Hermetic refrigerant compressor motor control with manual resetting overloads. A hermetic refrigerant compressor motor is a combination consisting of a compressor and a motor, both of which are enclosed in the same housing, with no external shaft or shaft seals, the motor operating in the refrigerant.
This category is for contactors used in Hermetic refrigerant compressor motor control with automatic resetting overloads.
These utilization categories help in the selection and application of contactors based on the specific nature of the load and the operational requirements, ensuring that the contactors are appropriately matched to the intended use, thus promoting safety and optimal performance.
Understanding these ratings is crucial for selecting the right contactor for an application, as it ensures that the contactor can handle the specific electrical loads and operational conditions it will encounter.
| Rating | AC-1 (A) | AC-2 (A) | AC-3 (A) | AC-3e (A) | AC-4 (A) | AC-5a (A) | AC-5b (A) | AC-6a (A) | AC-8a (A) | AC-8b (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| MO 9 | 30 | 9 | 9 | 9 | 9 | 9 | 9 | 4 | 12 | 11.5 |
| MO 12 | 32 | 12 | 12 | 12 | 12 | 12 | 12 | 5 | 16 | 15.5 |
| MO 18 | 32 | 18 | 18 | 18 | 18 | 18 | 18 | 8 | 22 | 23.5 |
| MO 25 | 45 | 25 | 25 | 25 | 25 | 25 | 25 | 11 | 30 | 32.5 |
| MO 32 | 50 | 32 | 32 | 32 | 32 | 32 | 32 | 14 | 40 | 41.5 |
| MO 40 | 50 | 40 | 40 | 40 | 40 | 40 | 40 | 18 | 50 | 52 |
| MO 45 | 50 | 45 | 45 | 45 | 45 | 45 | 45 | 20 | 55 | 58.5 |
| MO 50 | 100 | 50 | 50 | 50 | 50 | 50 | 50 | 22 | 63 | 65 |
| MO 60 | 100 | 60 | 60 | 60 | 60 | 60 | 60 | 26 | 73 | 78 |
| MO 70 | 100 | 70 | 70 | 70 | 70 | 70 | 70 | 30 | 85 | 91 |
| MO 80 | 125 | 80 | 80 | 80 | 80 | 80 | 80 | 35 | 95 | 104 |
| MO 95 | 125 | 95 | 95 | 95 | 95 | 95 | 95 | 42 | 120 | 123.5 |
| MO 110 | 140 | 110 | 110 | 110 | 110 | 110 | 110 | 50 | 140 | 143 |
| MO 140 | 250 | 140 | 140 | 140 | 140 | 140 | 140 | 63 | 165 | 182 |
| MO 185 | 275 | 185 | 185 | 185 | 185 | 185 | 185 | 83 | 220 | 240.5 |
| MO 225 | 275 | 225 | 225 | 225 | 225 | 225 | 225 | 101 | 270 | 292.5 |
| MO 250 | 400 | 250 | 250 | 250 | 250 | 250 | 250 | 113 | 300 | 325 |
| MO 300 | 500 | 300 | 300 | 300 | 300 | 300 | 300 | 135 | 360 | 390 |
