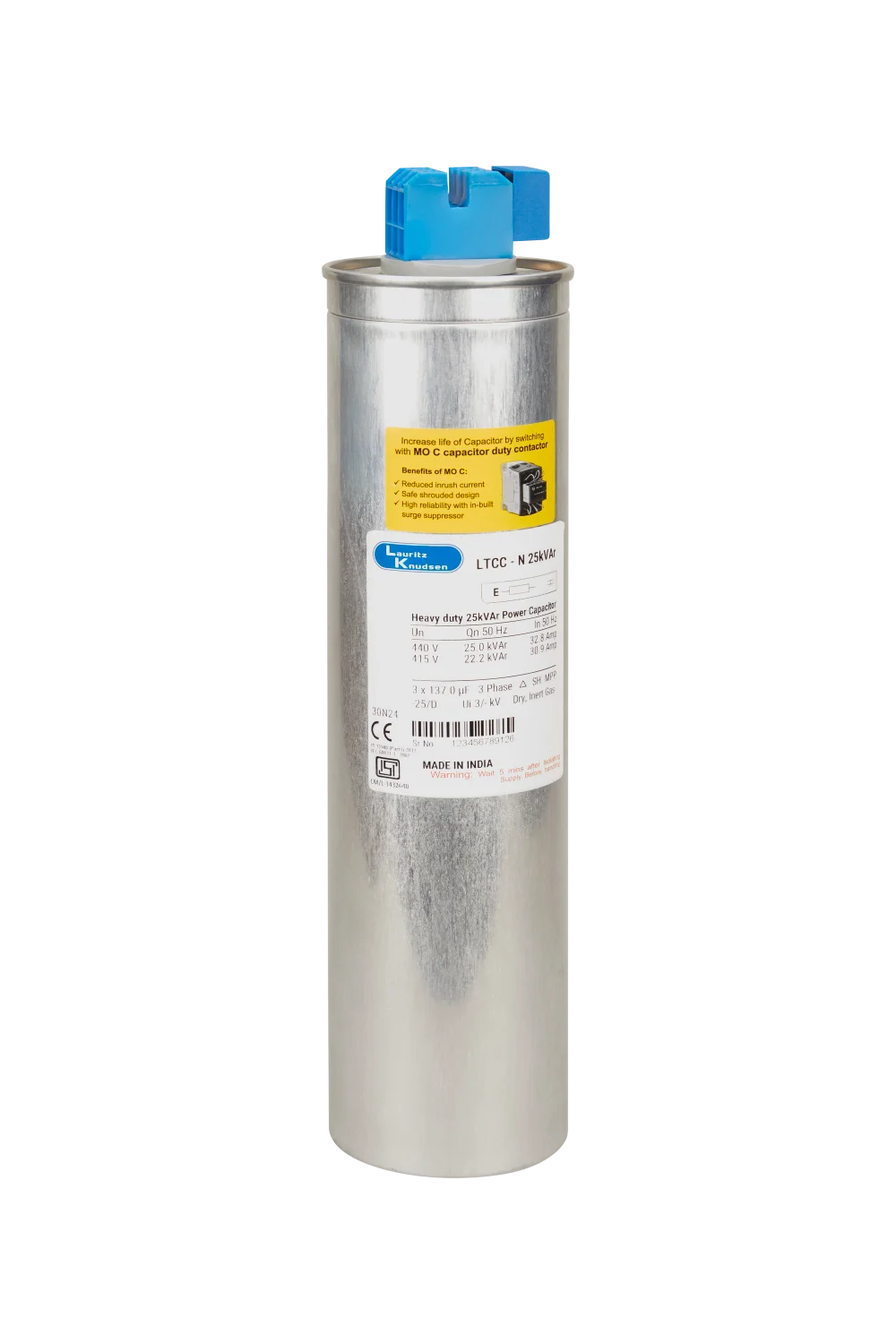

Gas Filled - Heavy Duty Plus Capacitors

Gas Filled - Heavy Duty Plus Capacitors
Overview

Gas filled Heavy Duty Plus capacitors are metallised polypropylene capacitors available from 3-30 kVAr in cylindrical configuration. These capacitors have an inrush withstand of 300 times In and an overload withstand capacity of 2.0 times In. These capacitors have safety features like over pressure disconnector and self healing. Compact design ensures space saving.

alt Text

Features

  • Capacitor Technologies – MPP type
  • 1.8 x In Over current withstand capacity.
  • 300 x In Peak Inrush current withstand capacity
  • Inbuilt protection such as OPD, Discharge Resistor, IP 20 terminal
  • Low Operating Losses (0.35 W/kVAr)
  • Inert gas as coolent (Non-flammable)

Benefits of FM1 QT

Benefits

  • Available in 440 V, 480 V and 525 V.
  • Suitable for Heavy Industrial application
  • Designed for Indian conditions
  • Available in a wide range (3 kVAr to 33.1 kVAr in Cyl) to meet demanding requirements
  • Compact and space-saving design offers flexibility and easy assembly
  • Long Life – 1,50,000 hrs

alt Text

More Applications & Usage

  • Process Industries
  • Commercial Buildings
  • Rice Shellers
  • Marble Industries
