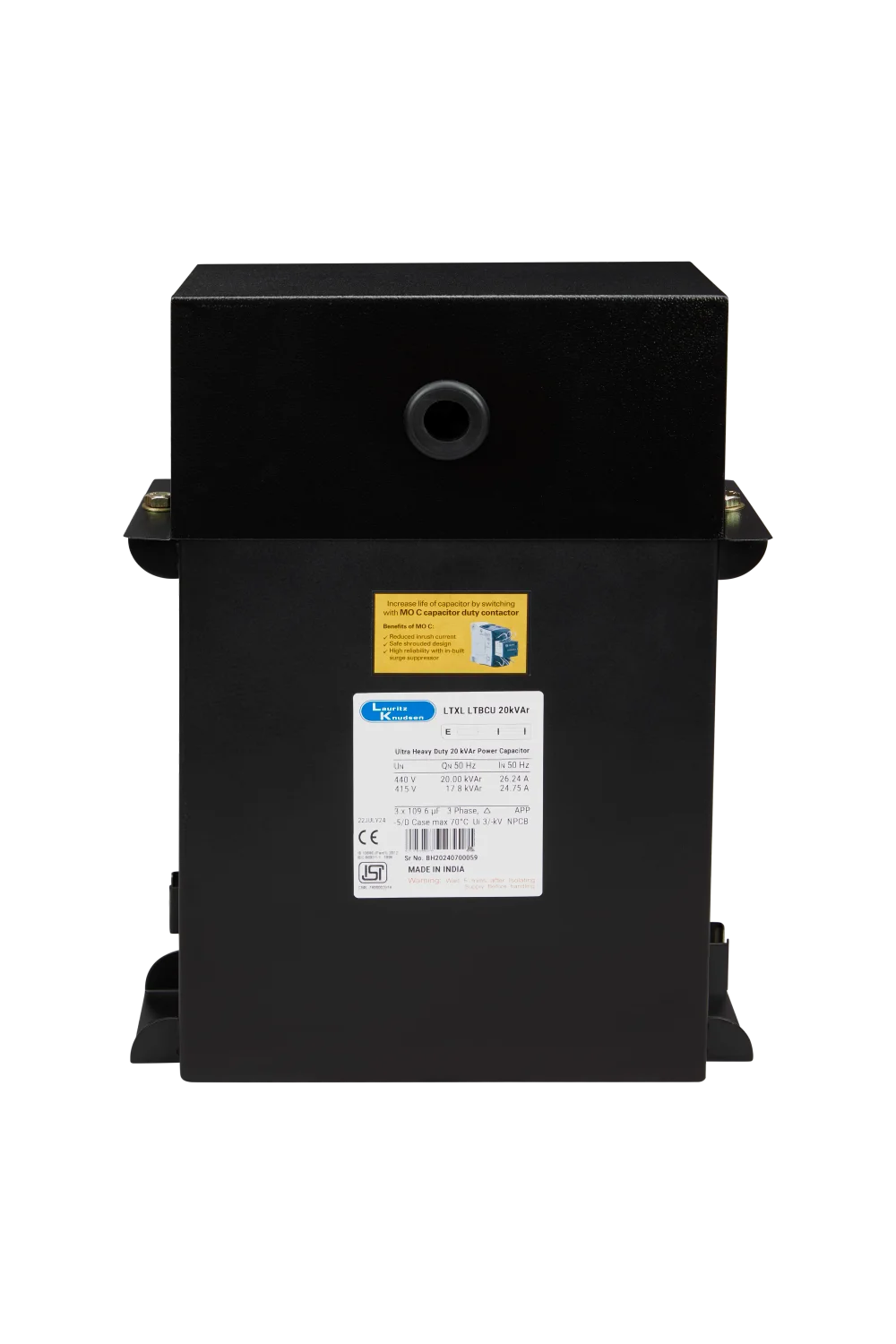

Ultra Heavy Duty Box Capacitors - LTXL

Ultra Heavy Duty Box Capacitors - LTXL

MICON 225: 0.1 s-10 hrs Multirange Timer

Overview

The LTXL ultra-heavy duty box capacitors are advanced Aluminium Poly Propylene type capacitors. They can withstand heavy load fluctuations, high inrush current and harmonics. They can be used in applications such as welding, steel rolling, cements etc., with heavy load fluctuations, high harmonic distortion levels (non-linear load >15%) and systems with high dv / dt.

alt Text

Features

  • 3 x In Over current withstand capacity.
  • 500 x In Peak Inrush current withstand capacity
  • Inbuilt protection with internal Fuse
  • Glazed Ceramic Bushing
  • Stainless earthing Pad
  • Low Operating Losses (0.5 W/kVAr)

Benefits of FM1 QT

Benefits

  • Suitable for Harsh environment with heavy load fluctuation and high thermal loading such as Steel Plants, Automobile, Cement plants, Fabrication industries  etc.
  • Available in 440 V, 480 V and 525 V.
  • Suitable for Mid & Large scale Heavy Industrial application
  • Available in a wide range (5 kVAr to 50 kVAr in Box)  to meet demanding requirements
  • Extended Long Life – 3,00,000 hrs
  • Designed for Indian tropical conditions temp upto 70 Degree

alt Text

More Applications & Usage

  • Heavy Large Scale Industry
  • Steel
  • Cement
  • Automobile
  • Fabrication
